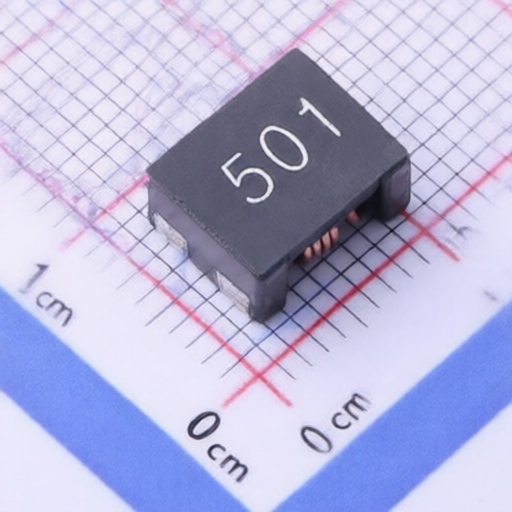

COILMX MACM9070-501
Manufacturer:
COILMX
Asian Brands
Mfr. Part #:
MACM9070-501
Package:
SMD-4P,9x7mm
Customer #:
Key Attributes:
CMC 5.5A 2LN 600Ω SMD
Description:
2Line Common Mode Choke Surface Mount 9x7x4.8mm 600Ω@100MHz 5.5A DCR 8mΩ
Datasheet:
COILMX MACM9070-501
Products Specifications
Category:
Manufacturer:
Package:
SMD-4P,9x7mm
Insulation Resistance(IR):
10MΩ
Operating Temperature:
-55℃~+125℃
DC Resistance(DCR):
8mΩ
Voltage Rating - DC:
80V
Number of Lines:
2
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 700 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8548900001 |
| USHTS | - |
| TARIC | - |
| CAHTS | - |
| BRHTS | - |
| INHTS | - |
| MXHTS | - |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
COILMX
468 Products
Shenzhen MOTTO Technology Co., Ltd.
(hereinafter referred to as "COILMX") is a high-tech enterprise, a manufacturer specializing in power inductor devices integrating R&D, design, manufacturing, sales, and service. Since the establishment of HONGKONG MOTTO ELECTRONICS LIMITED, it has continuously introduced advanced equipment and improved manufacturing processes. In 2003, Shenzhen MOTTO Technology Co., Ltd. was established, focusing on the production of plug-in and SMD power inductors. In 2008, SMD-integrated molding and plug-in integrated molding branches were established in Longhua, Shenzhen. In 2009, Huanggang MOTTO Technology Co., Ltd. was established, focusing on the manufacturing of high-current power inductor components. The company's main products are various inductors such as SMD power inductors, and integrated molded inductors, all of which comply with RoHS standards and halogen-free requirements. These products are widely used in TVs, mobile phones, digital cameras, DVDs, DV
