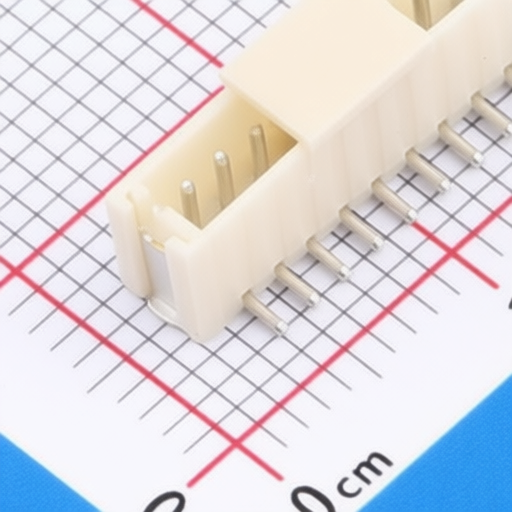

CNJM CNJMA1501WV-S-9P
Manufacturer:
CNJM
Asian Brands
Mfr. Part #:
CNJMA1501WV-S-9P
Package:
SMD,P=1.5mm
Customer #:
Key Attributes:
1.5mm pitch housing, 1.5mm pitch Terminal
Description:
1x9P PA66 1.5mm 100V 9 1 -40℃~+105℃ Surface Mount,Vertical SMD,P=1.5mm Headers, Male Pins RoHS
Datasheet:
CNJM CNJMA1501WV-S-9P
Products Specifications
Manufacturer:
Package:
SMD,P=1.5mm
Y-Width of Bottom Edge on Board:
5.1mm
Flame Retardant Rating:
UL94V-0
Pins Structure:
1x9P
Contact Material:
PA66
Pitch:
1.5mm
Voltage Rating (Max):
100V
Number of PINs Per Row:
9
Number of Rows:
1
X-Length of Bottom Edge on Board (Spacing Line):
16.5mm
Operating Temperature:
-40℃~+105℃
Mounting Type:
Surface Mount,Vertical
Z-Height of the Board:
3.7mm
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 1000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
