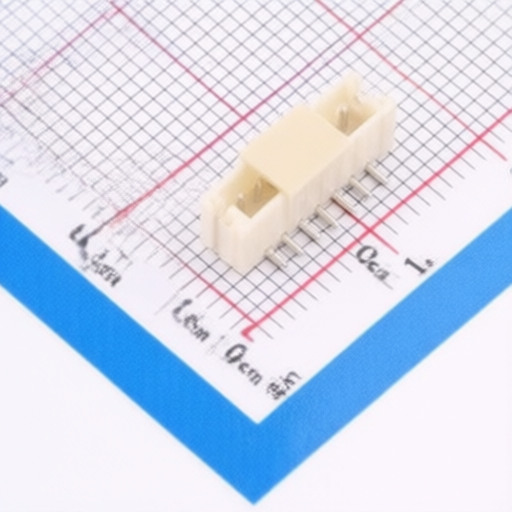

CNJM CNJMA1501WV-S-7P
Manufacturer:
CNJM
Asian Brands
Mfr. Part #:
CNJMA1501WV-S-7P
Package:
SMD,P=1.5mm
Customer #:
Key Attributes:
CONN HEADER SMD 7POS 1.5mm
Description:
Connector Header 7 position 1.5mm Pitch 1A Surface Mount,Vertical -40℃~+105℃
Datasheet:
CNJM CNJMA1501WV-S-7P
Products Specifications
Manufacturer:
Package:
SMD,P=1.5mm
Y-Width of Bottom Edge on Board:
5.1mm
Pins Structure:
1x7P
Reference Series:
-
Contact Material:
PA66
Operating Temperature:
-40℃~+105℃
Flame Retardant Rating:
UL94V-0
Pitch:
1.5mm
Voltage Rating (Max):
100V
Number of PINs Per Row:
7
Number of Rows:
1
X-Length of Bottom Edge on Board (Spacing Line):
13.5mm
Z-Height of the Board:
3.7mm
Row Spacing:
-
Mounting Type:
Surface Mount,Vertical
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 1000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
CNJM
375 Products
Joint More Precision Electronics was established in September 2008 and located in China hardware mold famous town of Dongguan Changan, it's adjacent to the special economic zone of Shenzhen. Companies with connectors product design, production, and sale as a whole. The main products are HSG, Wafer, header and very widely used in all kinds of home appliance, digital products, computer, communication equipment, modern office equipment, car audio etc, various products meet all kinds of safety requirements in the industry and recognized to UL, CSA, TUV safety agency authority, etc and with the environmental quality of the material guarantee product complies with even more than the ROHS environmental standards. After the market test, products exported to Europe and America, Southeast Asia and Hong Kong and Taiwan regions.
