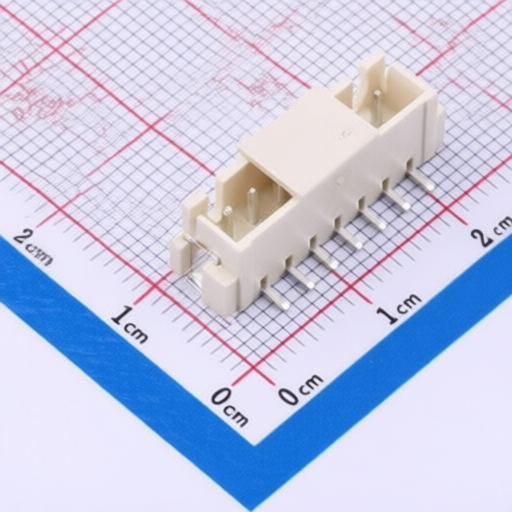

CNJM CNJMA2501WV-S-7P
Manufacturer:
CNJM
Asian Brands
Mfr. Part #:
CNJMA2501WV-S-7P
Package:
SMD,P=2.5mm
Customer #:
Key Attributes:
2.5mm pitch wafer SMT
Description:
1x7P LCP 2mm 250V 7 1 -40℃~+105℃ Right Angle SMD,P=2.5mm Headers, Male Pins RoHS
Datasheet:
CNJM CNJMA2501WV-S-7P
Products Specifications
Manufacturer:
Package:
SMD,P=2.5mm
Y-Width of Bottom Edge on Board:
7.8mm
Flame Retardant Rating:
UL94V-0
Pins Structure:
1x7P
Contact Material:
LCP
Pitch:
2mm
Voltage Rating (Max):
250V
Number of PINs Per Row:
7
Number of Rows:
1
X-Length of Bottom Edge on Board (Spacing Line):
22.5mm
Z-Height of the Board:
6mm
Operating Temperature:
-40℃~+105℃
Mounting Type:
Right Angle
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 500 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
CNJM
375 Products
Joint More Precision Electronics was established in September 2008 and located in China hardware mold famous town of Dongguan Changan, it's adjacent to the special economic zone of Shenzhen. Companies with connectors product design, production, and sale as a whole. The main products are HSG, Wafer, header and very widely used in all kinds of home appliance, digital products, computer, communication equipment, modern office equipment, car audio etc, various products meet all kinds of safety requirements in the industry and recognized to UL, CSA, TUV safety agency authority, etc and with the environmental quality of the material guarantee product complies with even more than the ROHS environmental standards. After the market test, products exported to Europe and America, Southeast Asia and Hong Kong and Taiwan regions.
