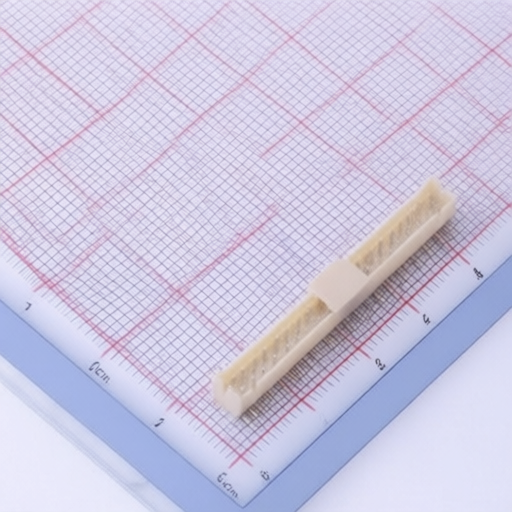

CNJM CNJMA2006WV-S-2X20P
Manufacturer:
CNJM
Asian Brands
Mfr. Part #:
CNJMA2006WV-S-2X20P
Package:
SMD,P=2mm
Customer #:
Key Attributes:
2.0mm PITCH 180 DUAL ROW WAFER SMT TYPE
Description:
2x20P PA9T 2mm 250V 20 2 -40℃~+105℃ Surface Mount,Vertical SMD,P=2mm Headers, Male Pins RoHS
Products Specifications
Manufacturer:
Package:
SMD,P=2mm
Y-Width of Bottom Edge on Board:
5.3mm
Flame Retardant Rating:
UL94V-0
Pins Structure:
2x20P
Contact Material:
PA9T
Pitch:
2mm
Voltage Rating (Max):
250V
Number of PINs Per Row:
20
Number of Rows:
2
X-Length of Bottom Edge on Board (Spacing Line):
42mm
Operating Temperature:
-40℃~+105℃
Mounting Type:
Surface Mount,Vertical
Z-Height of the Board:
6.2mm
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 500 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
Get Best Price
Inquiry
Negotiate
Payment
Shipping
CNJM
375 Products
Joint More Precision Electronics was established in September 2008 and located in China hardware mold famous town of Dongguan Changan, it's adjacent to the special economic zone of Shenzhen. Companies with connectors product design, production, and sale as a whole. The main products are HSG, Wafer, header and very widely used in all kinds of home appliance, digital products, computer, communication equipment, modern office equipment, car audio etc, various products meet all kinds of safety requirements in the industry and recognized to UL, CSA, TUV safety agency authority, etc and with the environmental quality of the material guarantee product complies with even more than the ROHS environmental standards. After the market test, products exported to Europe and America, Southeast Asia and Hong Kong and Taiwan regions.
