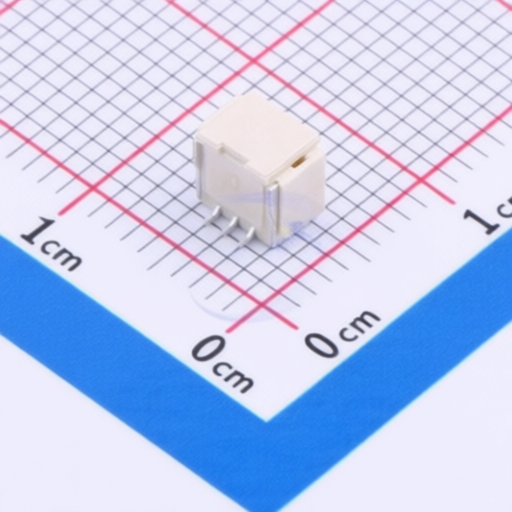

CNJM CNJMA1001WV-S-3P
Manufacturer:
CNJM
Asian Brands
Mfr. Part #:
CNJMA1001WV-S-3P
Package:
SMD,P=1mm
Customer #:
Key Attributes:
CONN HEADER SMD 3POS 1mm
Description:
1x3P LCP 1mm 50V 3 1 -40℃~+105℃ Surface Mount,Vertical SMD,P=1mm Headers, Male Pins RoHS
Datasheet:
CNJM CNJMA1001WV-S-3P
Products Specifications
Manufacturer:
Package:
SMD,P=1mm
Y-Width of Bottom Edge on Board:
3.7mm
Flame Retardant Rating:
UL94V-0
Pins Structure:
1x3P
Contact Material:
LCP
Pitch:
1mm
Voltage Rating (Max):
50V
Number of PINs Per Row:
3
Number of Rows:
1
X-Length of Bottom Edge on Board (Spacing Line):
5mm
Operating Temperature:
-40℃~+105℃
Mounting Type:
Surface Mount,Vertical
Z-Height of the Board:
4.9mm
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 1500 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
CNJM
375 Products
Joint More Precision Electronics was established in September 2008 and located in China hardware mold famous town of Dongguan Changan, it's adjacent to the special economic zone of Shenzhen. Companies with connectors product design, production, and sale as a whole. The main products are HSG, Wafer, header and very widely used in all kinds of home appliance, digital products, computer, communication equipment, modern office equipment, car audio etc, various products meet all kinds of safety requirements in the industry and recognized to UL, CSA, TUV safety agency authority, etc and with the environmental quality of the material guarantee product complies with even more than the ROHS environmental standards. After the market test, products exported to Europe and America, Southeast Asia and Hong Kong and Taiwan regions.
