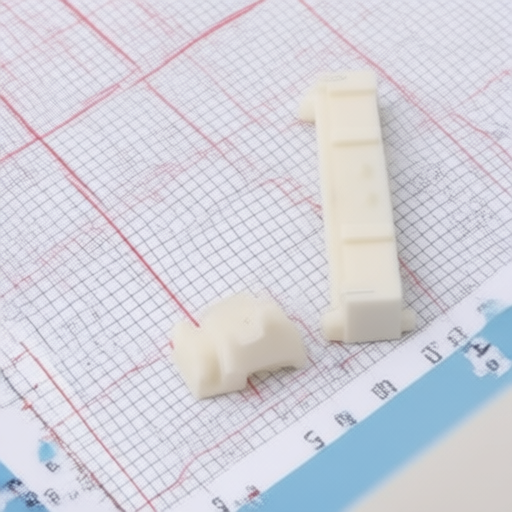

CNJM CNJMA2012WR-S-14P
Manufacturer:
CNJM
Asian Brands
Mfr. Part #:
CNJMA2012WR-S-14P
Package:
SMD,P=2mm
Customer #:
Key Attributes:
CONN HEADER SMD R/A 14POS 2mm
Description:
1x14P 2mm PA6T 250V 14 1 Surface Mount, Right Angle -25℃~+85℃ SMD,P=2mm Headers, Male Pins RoHS
Datasheet:
CNJM CNJMA2012WR-S-14P
Products Specifications
Manufacturer:
Package:
SMD,P=2mm
Y-Width of Bottom Edge on Board:
6.9mm
Flame Retardant Rating:
UL94V-0
Pins Structure:
1x14P
Pitch:
2mm
Contact Material:
PA6T
Voltage Rating (Max):
250V
Number of PINs Per Row:
14
Number of Rows:
1
X-Length of Bottom Edge on Board (Spacing Line):
32mm
Mounting Type:
Surface Mount, Right Angle
Operating Temperature:
-25℃~+85℃
Z-Height of the Board:
5.7mm
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 700 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
