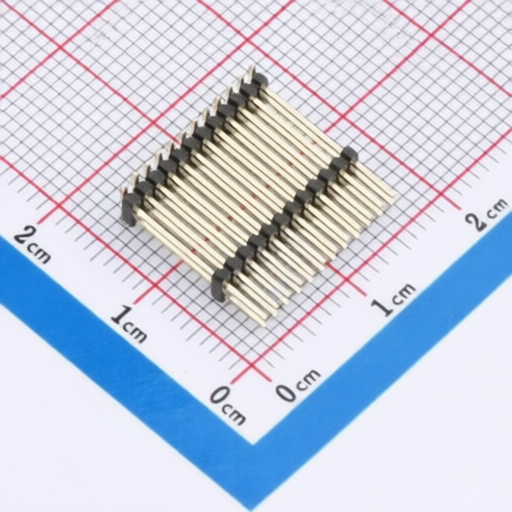

CHIN-BAN P3C24N-401053-B12P
Manufacturer:
CHIN-BAN
Asian Brands
Mfr. Part #:
P3C24N-401053-B12P
Package:
SMD,P=1.27mm
Customer #:
Key Attributes:
CONN HEADER 24POS 1.27mm DUAL ROW SMD
Description:
Pin Header 24 Position 1.27mm Pitch Dual Row Surface Mount -40℃~+105℃
Products Specifications
Manufacturer:
Package:
SMD,P=1.27mm
Pins Structure:
2x12P
Number of Pins:
24P
Contact Plating:
Gold
Contact Material:
Copper alloy
Operating Temperature:
-40℃~+105℃
Circluar Pins/Square Pins:
Pin Header
Color:
Black
Pitch:
1.27mm
Insulation Height:
1mm
Length of Mating Pin:
4mm
Voltage Rating (Max):
125V
Number of Rows:
2
Current Rating-Signal:
1A
Mounting Type:
Surface Mount,Vertical
Row Spacing:
1.27mm
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 500 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
