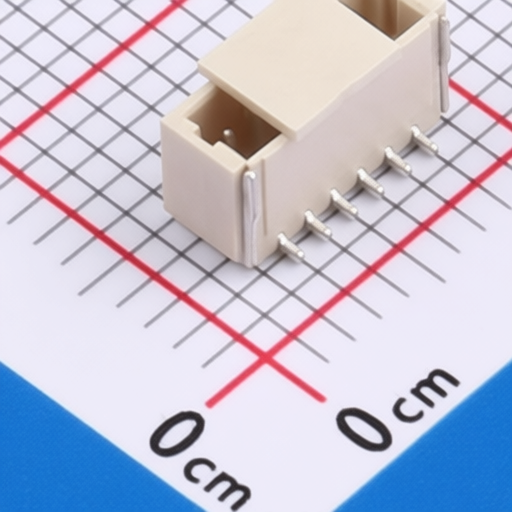

CHIN-BAN 1WF02-244006-00001
Manufacturer:
CHIN-BAN
Asian Brands
Mfr. Part #:
1WF02-244006-00001
Package:
SMD,P=1mm
Customer #:
Key Attributes:
CONN HEADER SMD 6POS 1mm
Description:
Connector Header 6 position 1mm Pitch 1A Surface Mount,Vertical -25℃~+85℃
Datasheet:
CHIN-BAN 1WF02-244006-00001
Products Specifications
Manufacturer:
Package:
SMD,P=1mm
Y-Width of Bottom Edge on Board:
3.7mm
Pins Structure:
1x6P
Reference Series:
SH
Contact Plating:
Tin
Contact Material:
Copper alloy;LCP
Operating Temperature:
-25℃~+85℃
Flame Retardant Rating:
UL94V-0
Pitch:
1mm
Voltage Rating (Max):
50V
Number of PINs Per Row:
6
Number of Rows:
1
X-Length of Bottom Edge on Board (Spacing Line):
8mm
Z-Height of the Board:
4.85mm
Mounting Type:
Surface Mount,Vertical
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 1500 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
