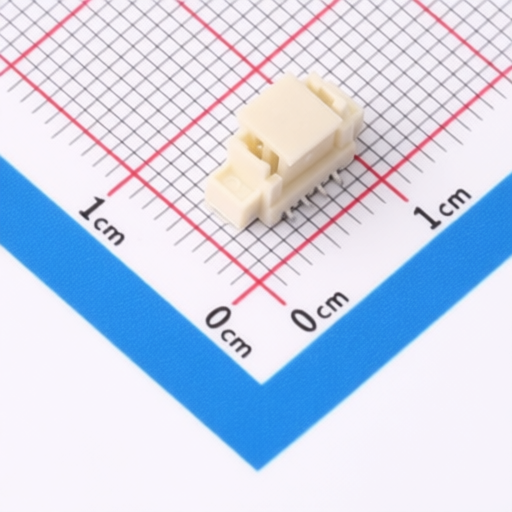

CHIN-BAN 1WF03-216004-00002
Manufacturer:
CHIN-BAN
Asian Brands
Mfr. Part #:
1WF03-216004-00002
Package:
SMD,P=1.25mm
Customer #:
Key Attributes:
CONN HEADER SMD 4POS 1.25mm
Description:
Connector Header 4 position 1.25mm Pitch 1A Surface Mount,Vertical -40℃~+85℃
Datasheet:
CHIN-BAN 1WF03-216004-00002
Products Specifications
Manufacturer:
Package:
SMD,P=1.25mm
Y-Width of Bottom Edge on Board:
3.7mm
Flame Retardant Rating:
UL94V-0
Pins Structure:
1x4P
Contact Plating:
Tin
Contact Material:
Copper alloy;PA
Pitch:
1.25mm
Voltage Rating (Max):
125V
Number of PINs Per Row:
4
Number of Rows:
1
X-Length of Bottom Edge on Board (Spacing Line):
9.75mm
Z-Height of the Board:
5.3mm
Operating Temperature:
-40℃~+85℃
Mounting Type:
Surface Mount,Vertical
Additional Information
| Type | Details |
|---|---|
| Minimum | 10 |
| Multiple | 10 |
| Standard Packaging | 1000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
