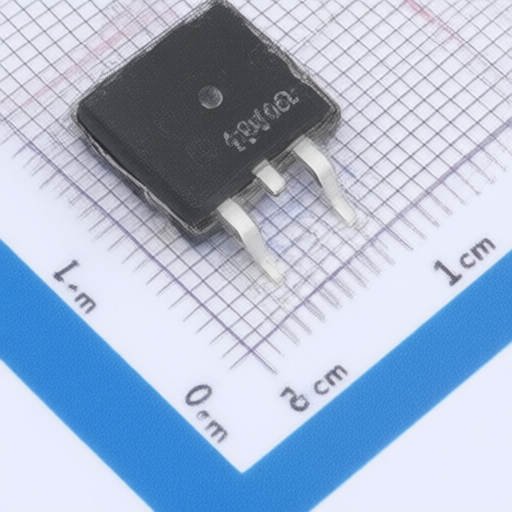

Bruckewell MSB100N042SB
Manufacturer:
Bruckewell
Asian Brands
Mfr. Part #:
MSB100N042SB
Package:
TO-263
Customer #:
Key Attributes:
MOSFET N-CH 100V 150A TO-263
Description:
N-Channel 100V 150A 275W Surface Mount TO-263
Datasheet:
Bruckewell MSB100N042SB
Products Specifications
Manufacturer:
Package:
TO-263
Configuration:
-
Drain to Source Voltage:
100V
Current - Continuous Drain(Id):
150A
Operating Temperature -:
-50℃~+150℃
RDS(on):
4.2mΩ@10V
Gate Threshold Voltage (Vgs(th)):
2.5V@250uA
Type:
N-Channel
Reverse Transfer Capacitance (Crss@Vds):
78pF
Number:
1 N-channel
Output Capacitance(Coss):
1.69nF
Input Capacitance(Ciss):
6.68nF
Pd - Power Dissipation:
275W
Gate Charge(Qg):
110nC@10V
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 800 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
