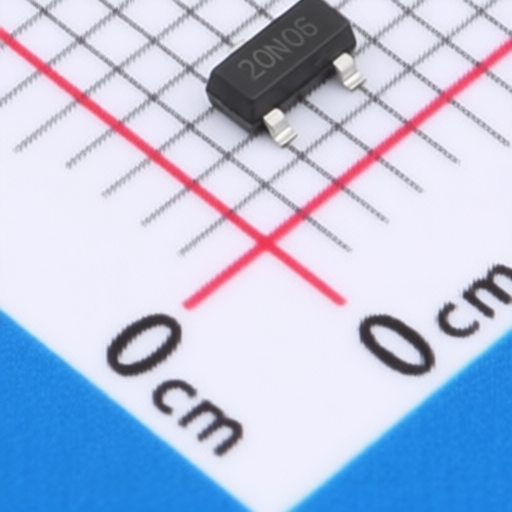

Bruckewell MS20N06S
Manufacturer:
Bruckewell
Asian Brands
Mfr. Part #:
MS20N06S
Package:
SOT-23
Customer #:
Key Attributes:
N-Channel 20-V(D-S) MOSFET
Description:
20V 9A 35mΩ@2.5V 1V@250uA 1 N-channel 1W SOT-23 Single FETs, MOSFETs RoHS
Datasheet:
Bruckewell MS20N06S
Products Specifications
Manufacturer:
Package:
SOT-23
Drain to Source Voltage:
20V
Configuration:
-
Current - Continuous Drain(Id):
9A
Operating Temperature -:
-55℃~+150℃
RDS(on):
35mΩ@2.5V
Gate Threshold Voltage (Vgs(th)):
1V@250uA
Type:
N-Channel
Reverse Transfer Capacitance (Crss@Vds):
68pF
Number:
1 N-channel
Output Capacitance(Coss):
75pF
Input Capacitance(Ciss):
670pF
Pd - Power Dissipation:
1W
Gate Charge(Qg):
8.6nC@4.5V
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 3000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
