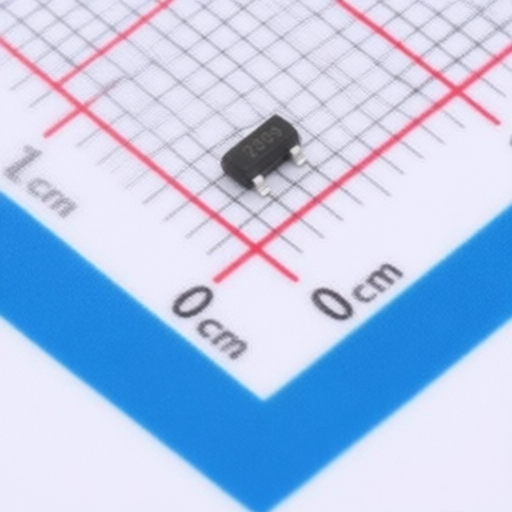

Bruckewell MS23P09
Manufacturer:
Bruckewell
Asian Brands
Mfr. Part #:
MS23P09
Package:
SOT-23
Customer #:
Key Attributes:
MOSFET P-CH 20V 5.8A SOT-23
Description:
P-Channel 20V 5.8A 1.56W Surface Mount SOT-23
Datasheet:
Bruckewell MS23P09
Products Specifications
Manufacturer:
Package:
SOT-23
Drain to Source Voltage:
20V
Configuration:
-
Current - Continuous Drain(Id):
5.8A
Operating Temperature -:
-55℃~+150℃
RDS(on):
33mΩ@4.5V
Gate Threshold Voltage (Vgs(th)):
1V@250uA
Type:
P-Channel
Reverse Transfer Capacitance (Crss@Vds):
115pF
Number:
1 P-Channel
Output Capacitance(Coss):
155pF
Pd - Power Dissipation:
1.56W
Input Capacitance(Ciss):
19.8pF
Gate Charge(Qg):
16.1nC@4.5V
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 3000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
