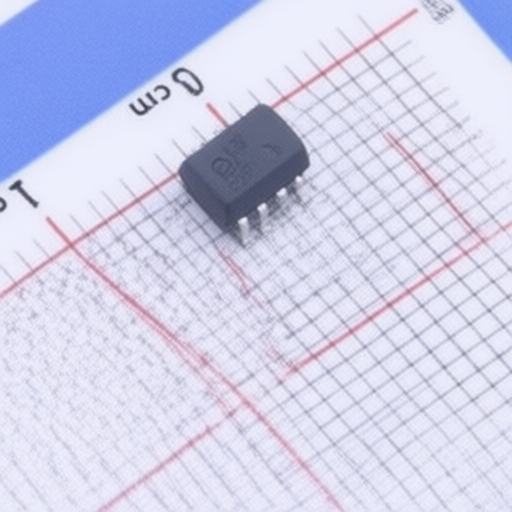

Broadcom HCPL-0370-500E

Broadcom HCPL-0370-500E

Name: Broadcom HCPL-0370-500E
Brand: Broadcom

Manufacturer: Broadcom

Mfr. Part #: HCPL-0370-500E

Package: SO-8

Customer #:

Key Attributes: Isolated Voltage/Current Detectors

Description: 30mA 0.59V 2V~18V AC,DC SO-8 Logic Output Optoisolators RoHS

Datasheet: Broadcom HCPL-0370-500E

Products Specifications

Category:

Isolators/Optocouplers, Optoisolators/Logic Output Optoisolators

Manufacturer:

Broadcom

Package:

SO-8

Power Dissipation:

275mW

Output Current:

30mA

Low Level Delay Time:

40us

High Level Delay Time:

15us

Input threshold current:

3.11mA

Voltage - Forward(Vf):

0.59V

Voltage - Supply:

2V~18V

Forward Current(If):

4.4mA

Operating Temperature:

-40℃~+85℃

CMTI(kV/us):

4kV/us

Isolation Voltage(Vrms):

3.75kV

Number of Channels:

Input Type:

AC,DC

Additional Information

Type	Details
Minimum	1
Multiple	1
Standard Packaging	1500
Sales Unit	Piece

Compliance & Export Codes

Type	Details
RoHS
ECCN	EAR99
CNHTS	8541490000
USHTS	8541491010
TARIC	8541490000
CAHTS	8541490090
BRHTS	85414900
INHTS	85414900
MXHTS	8541.40.02
