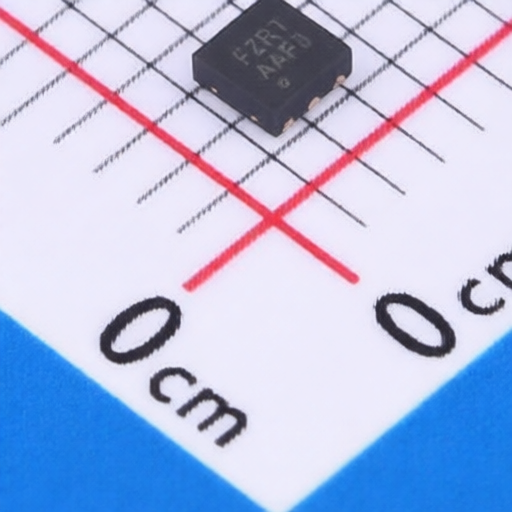

AWINIC(Shanghai Awinic Tech) AW36099DNR
Manufacturer:
AWINIC(Shanghai Awinic Tech)
Asian Brands
Mfr. Part #:
AW36099DNR
Package:
DFN-6L(2x2)
Customer #:
Key Attributes:
Synchronous Step-up Converter with Ultra Low Quiescent Current
Description:
Boost Adjustable 2.5V~5.5V 500mA DFN-6L(2x2) Voltage Regulators - DC DC Switching Regulators RoHS
Datasheet:
AWINIC(Shanghai Awinic Tech) AW36099DNR
Products Specifications
Category:
Manufacturer:
Package:
DFN-6L(2x2)
Operating Temperature:
-40℃~+85℃
Function:
Boost
Number of Outputs:
1
Output Type:
Adjustable
Topology:
Boost
Operating Voltage:
800mV~5.2V
Switch tube (built-in/external):
Built-in
Output Voltage:
2.5V~5.5V
Output Current:
500mA
Quiescent Current:
350nA
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 3000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8542399000 |
| USHTS | 8542390001 |
| TARIC | 8542399000 |
| CAHTS | 8542390000 |
| BRHTS | 85423999 |
| INHTS | 85423900 |
| MXHTS | 8542.39.99 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
AWINIC(Shanghai Awinic Tech)
182 Products
AWINIC (Shanghai Awinic Tech) was founded in 2008 by Sun Hongjun, focusing on the design of mixed-signal, analog, and RF ICs. It primarily serves the consumer electronics sector, including smartphones, wearable devices, smart hardware, and IoT.
