CONSONANCE CN5120

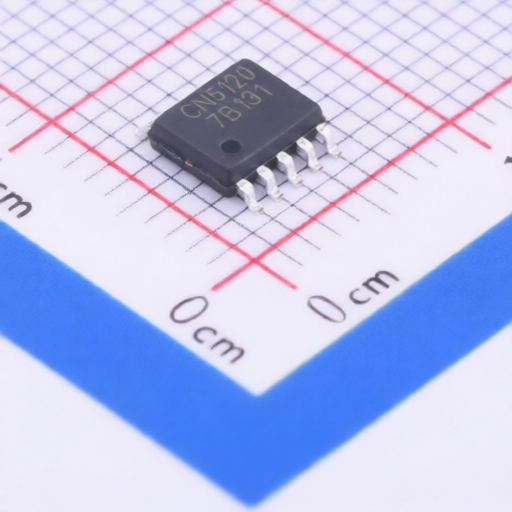

CONSONANCE CN5120

Name: CONSONANCE CN5120
Brand: CONSONANCE

Manufacturer: CONSONANCE Asian Brands

Mfr. Part #: CN5120

Package: SSOP-10-150mil

Customer #:

Key Attributes: 4.5V to 32V Input Peak Current Mode Boost/Flyback PWM Controller

Description: 285kHz~375kHz Boost Adjustable SSOP-10-150mil Voltage Regulators - DC DC Switching Regulators RoHS

Datasheet: CONSONANCE CN5120

Products Specifications

Category:

Integrated Circuits (ICs)/Power Management (PMIC)/Voltage Regulators - DC DC Switching Regulators

Manufacturer:

CONSONANCE

Package:

SSOP-10-150mil

Operating Temperature:

-40℃~+85℃

Frequency - Switching:

285kHz~375kHz

Function:

Boost

Number of Outputs:

Output Type:

Adjustable

Topology:

Boost;Flyback

Operating Voltage:

4.5V~32V

Switch tube (built-in/external):

External

Output Voltage:

Output Current:

Quiescent Current:

Additional Information

Type	Details
Minimum	5
Multiple	5
Standard Packaging	4000
Sales Unit	Piece

Compliance & Export Codes

Type	Details
RoHS
ECCN	-
CNHTS	8542399000
USHTS	8542390001
TARIC	8542399000
CAHTS	8542390000
BRHTS	85423999
INHTS	85423900
MXHTS	8542.39.99

About Product

Get Best Price

Inquiry

Negotiate

Payment

Shipping

CONSONANCE

92 Products

Authorised Brand Asian Brand

Shanghai Consonance Electronic Co., Ltd. (hereinafter referred to as "ShangHai Consonance Elec") is an innovative and professional high-tech company. Its headquarters is located in the Jiading Park of Zhangjiang High-tech Park, Shanghai, with design centers in Hong Kong and customer support centers in Shanghai, Shenzhen, and Beijing. Founded in 2004, Consonance specializes in analog and mixed-signal technology, focusing on continued investment to provide products with high reliability and consistency. The company has developed a range of products with independent intellectual property rights, including voltage detection and reset ICs, charge management ICs, LED driver ICs, DC-DC converter ICs, low dropout linear voltage regulation ICs, amplifier/comparator ICs, temperature switch ICs, battery discharge management ICs, as well as modules and MOSFETs. Consonance's vision is to deliver value to both customers and employees. The company supports its clients worldwide in creating unique app
