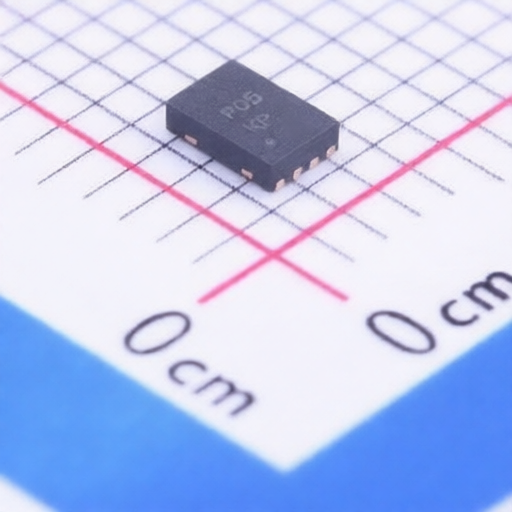

AWINIC(Shanghai Awinic Tech) AW3605DNR
Manufacturer:
AWINIC(Shanghai Awinic Tech)
Asian Brands
Mfr. Part #:
AW3605DNR
Package:
TDFN-8L(2x3)
Customer #:
Key Attributes:
High Efficiency Synchronous Boost DC-DC Converter
Description:
Boost Switching Regulator IC Fixed 5V 1 Output 0.5A TDFN-8L(2x3)
Datasheet:
AWINIC(Shanghai Awinic Tech) AW3605DNR
Products Specifications
Category:
Manufacturer:
Package:
TDFN-8L(2x3)
Operating Temperature:
-40℃~+85℃
Frequency - Switching:
1.5MHz
Function:
Boost
Number of Outputs:
1
Output Type:
Fixed
Topology:
Boost
Operating Voltage:
2.9V~4.5V
Switch tube (built-in/external):
Built-in
Output Voltage:
5V
Output Current:
500mA
Quiescent Current:
30uA
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 6000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8542399000 |
| USHTS | 8542390001 |
| TARIC | 8542399000 |
| CAHTS | 8542390000 |
| BRHTS | 85423999 |
| INHTS | 85423900 |
| MXHTS | 8542.39.99 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
AWINIC(Shanghai Awinic Tech)
182 Products
AWINIC (Shanghai Awinic Tech) was founded in 2008 by Sun Hongjun, focusing on the design of mixed-signal, analog, and RF ICs. It primarily serves the consumer electronics sector, including smartphones, wearable devices, smart hardware, and IoT.
