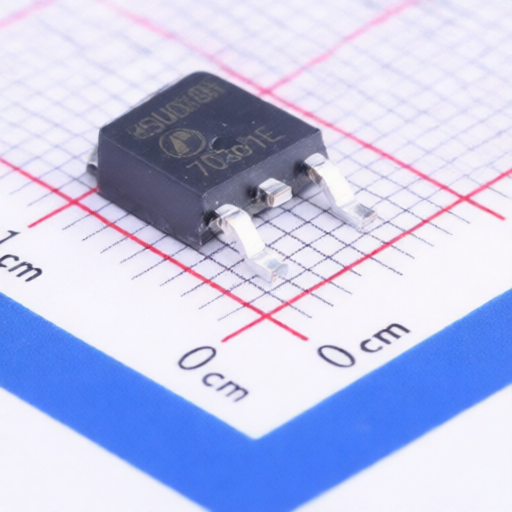

APEC AP85U03GH-HF
Manufacturer:
APEC
Asian Brands
Mfr. Part #:
AP85U03GH-HF
Package:
TO-252-2(DPAK)
Customer #:
Description:
30V 75A 12mΩ@4.5V,30A 3V@250uA 1 N-channel 60W TO-252-2(DPAK) Single FETs, MOSFETs RoHS
Products Specifications
Manufacturer:
Package:
TO-252-2(DPAK)
Drain to Source Voltage:
30V
Current - Continuous Drain(Id):
75A
Operating Temperature -:
-55℃~+175℃
RDS(on):
12mΩ@4.5V,30A
Gate Threshold Voltage (Vgs(th)):
3V@250uA
Type:
N-Channel
Reverse Transfer Capacitance (Crss@Vds):
445pF
Number:
1 N-channel
Input Capacitance(Ciss):
4.66nF
Output Capacitance(Coss):
475pF
Pd - Power Dissipation:
60W
Gate Charge(Qg):
-
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 3000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
Get Best Price
Inquiry
Negotiate
Payment
Shipping
APEC
146 Products
Established in 1998, APEC is the first company to successfully integrate the 6-inch DMOS process in Taiwan with ISO9001 certification. APEC provides total solutions for new power requirements in MOSFETs, IGBTs, and Power ICs. The company’s products are broadly applied in the computing, consumer electronics, display, communications and industrial segments.
