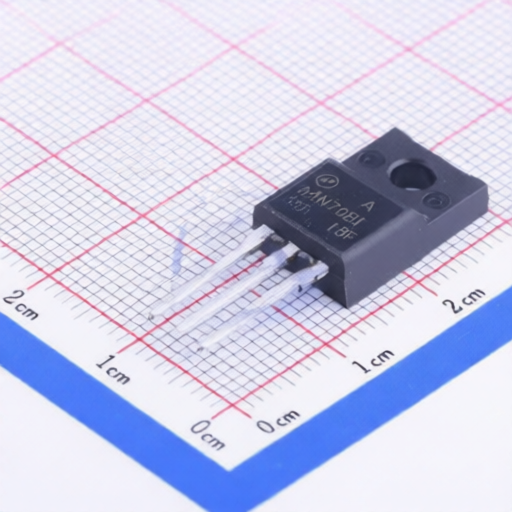

APEC AP04N70BI-A
Manufacturer:
APEC
Asian Brands
Mfr. Part #:
AP04N70BI-A
Package:
TO-220F-3
Customer #:
Description:
650V 4A 2.4Ω@10V,2A 4V@250uA 1 N-channel 33W TO-220F-3 Single FETs, MOSFETs RoHS
Products Specifications
Manufacturer:
Package:
TO-220F-3
Drain to Source Voltage:
650V
Current - Continuous Drain(Id):
4A
Operating Temperature -:
-55℃~+150℃
RDS(on):
2.4Ω@10V,2A
Gate Threshold Voltage (Vgs(th)):
4V@250uA
Type:
N-Channel
Reverse Transfer Capacitance (Crss@Vds):
6pF
Number:
1 N-channel
Output Capacitance(Coss):
65pF
Input Capacitance(Ciss):
950pF
Pd - Power Dissipation:
33W
Gate Charge(Qg):
16.7nC@10V
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 50 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
Get Best Price
Inquiry
Negotiate
Payment
Shipping
APEC
146 Products
Established in 1998, APEC is the first company to successfully integrate the 6-inch DMOS process in Taiwan with ISO9001 certification. APEC provides total solutions for new power requirements in MOSFETs, IGBTs, and Power ICs. The company’s products are broadly applied in the computing, consumer electronics, display, communications and industrial segments.
