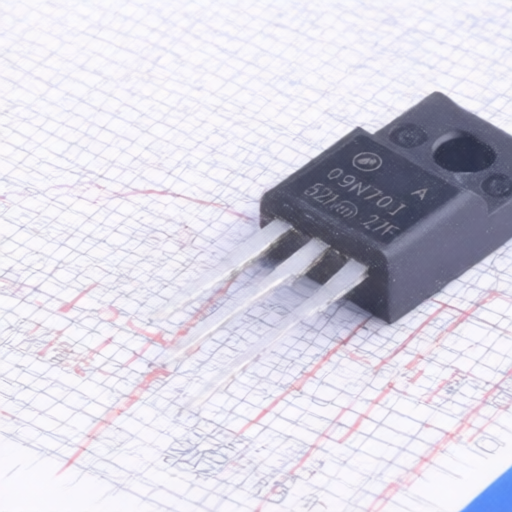

APEC AP09N70I-A
Manufacturer:
APEC
Asian Brands
Mfr. Part #:
AP09N70I-A
Package:
TO-220F-3
Customer #:
Description:
650V 9A 750mΩ@10V,4.5A 4V@250uA 42W TO-220F-3 Single FETs, MOSFETs RoHS
Products Specifications
Manufacturer:
Package:
TO-220F-3
Drain to Source Voltage:
650V
Current - Continuous Drain(Id):
9A
Operating Temperature -:
-55℃~+150℃
RDS(on):
750mΩ@10V,4.5A
Gate Threshold Voltage (Vgs(th)):
4V@250uA
Type:
N-Channel
Reverse Transfer Capacitance (Crss@Vds):
10pF
Number:
-
Input Capacitance(Ciss):
2.66nF
Output Capacitance(Coss):
170pF
Pd - Power Dissipation:
42W
Gate Charge(Qg):
44nC@9A
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 50 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
Get Best Price
Inquiry
Negotiate
Payment
Shipping
APEC
146 Products
Established in 1998, APEC is the first company to successfully integrate the 6-inch DMOS process in Taiwan with ISO9001 certification. APEC provides total solutions for new power requirements in MOSFETs, IGBTs, and Power ICs. The company’s products are broadly applied in the computing, consumer electronics, display, communications and industrial segments.
