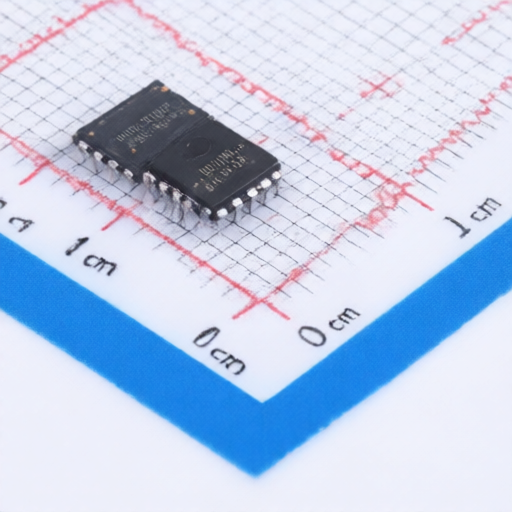

APEC AP10TN004CMT
Manufacturer:
APEC
Asian Brands
Mfr. Part #:
AP10TN004CMT
Package:
DFN-8(5x6)
Customer #:
Description:
100V 100A 4.8mΩ@10V 4V 104W DFN-8(5x6) Single FETs, MOSFETs RoHS
Products Specifications
Manufacturer:
Package:
DFN-8(5x6)
Drain to Source Voltage:
100V
Current - Continuous Drain(Id):
100A
RDS(on):
4.8mΩ@10V
Operating Temperature -:
-55℃~+150℃
Gate Threshold Voltage (Vgs(th)):
4V
Reverse Transfer Capacitance (Crss@Vds):
8pF
Pd - Power Dissipation:
104W
Input Capacitance(Ciss):
4.12nF
Output Capacitance(Coss):
650pF
Gate Charge(Qg):
73nC
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 3000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
Get Best Price
Inquiry
Negotiate
Payment
Shipping
APEC
146 Products
Established in 1998, APEC is the first company to successfully integrate the 6-inch DMOS process in Taiwan with ISO9001 certification. APEC provides total solutions for new power requirements in MOSFETs, IGBTs, and Power ICs. The company’s products are broadly applied in the computing, consumer electronics, display, communications and industrial segments.
