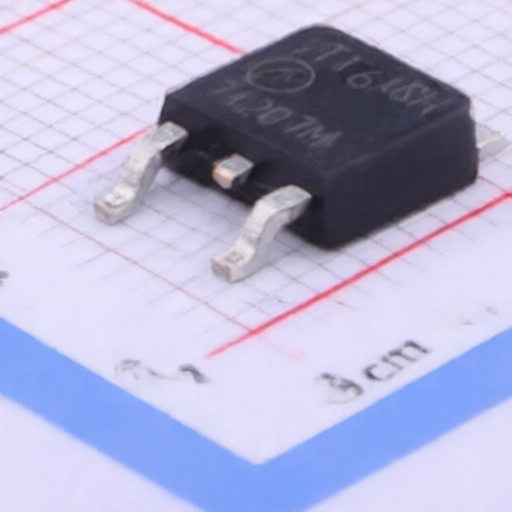

APEC AP9T16AGH-HF
Manufacturer:
APEC
Asian Brands
Mfr. Part #:
AP9T16AGH-HF
Package:
TO-252
Customer #:
Key Attributes:
MOSFET N-CH 20V 19.5A TO-252
Description:
N-Channel 20V 19.5A 12.5W Surface Mount TO-252
Products Specifications
Manufacturer:
Package:
TO-252
Drain to Source Voltage:
20V
Current - Continuous Drain(Id):
19.5A
Operating Temperature -:
-55℃~+150℃
RDS(on):
20mΩ@4.5V
Gate Threshold Voltage (Vgs(th)):
1.2V@250uA
Type:
N-Channel
Reverse Transfer Capacitance (Crss@Vds):
115pF
Number:
1 N-channel
Input Capacitance(Ciss):
2.08nF
Pd - Power Dissipation:
12.5W
Gate Charge(Qg):
25.6nC
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 3000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
Get Best Price
Inquiry
Negotiate
Payment
Shipping
APEC
146 Products
Established in 1998, APEC is the first company to successfully integrate the 6-inch DMOS process in Taiwan with ISO9001 certification. APEC provides total solutions for new power requirements in MOSFETs, IGBTs, and Power ICs. The company’s products are broadly applied in the computing, consumer electronics, display, communications and industrial segments.
