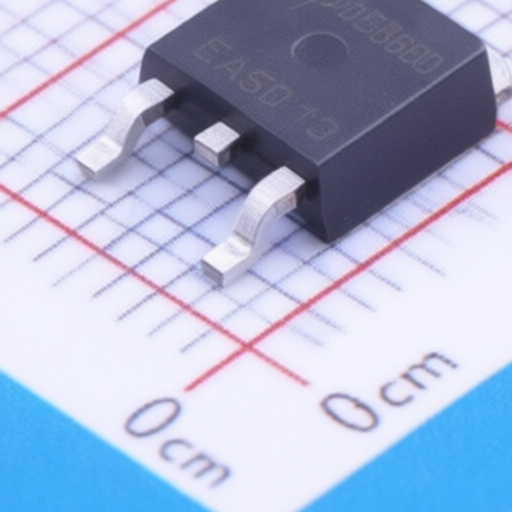

AOS AOD5B60D
Manufacturer:
AOS
Mfr. Part #:
AOD5B60D
Package:
TO-252-2(DPAK)
Customer #:
Description:
600V TO-252-2(DPAK) Single IGBTs RoHS
Datasheet:
AOS AOD5B60D
Products Specifications
Manufacturer:
Package:
TO-252-2(DPAK)
Td(off):
82ns
Pd - Power Dissipation:
-
Td(on):
12ns
Collector-Emitter Breakdown Voltage (Vces):
600V
Input Capacitance(Cies):
367pF@25V
IGBT Type:
-
Gate-Emitter Threshold Voltage (Vge(th)@Ic):
6V@1mA
Operating Temperature:
-55℃~+150℃@(Tj)
Gate Charge(Qg):
9.4nC@5A,15V
Reverse Recovery Time(trr):
98ns
Switching Energy(Eoff):
40uJ
Turn-On Energy (Eon):
140uJ
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 2500 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8541600000 |
| USHTS | 8541600080 |
| TARIC | 8541600000 |
| CAHTS | 8541600010 |
| BRHTS | 85416010 |
| INHTS | 85416000 |
| MXHTS | 8541.60.01 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
AOS
745 Products
AOS's portfolio of products targets high-volume applications, including but not limited to portable computers, flat panel TVs, LED lighting, smart phones, battery packs, consumer and industrial motor controls and power supplies for TVs, computers, servers and telecommunications equipment.
