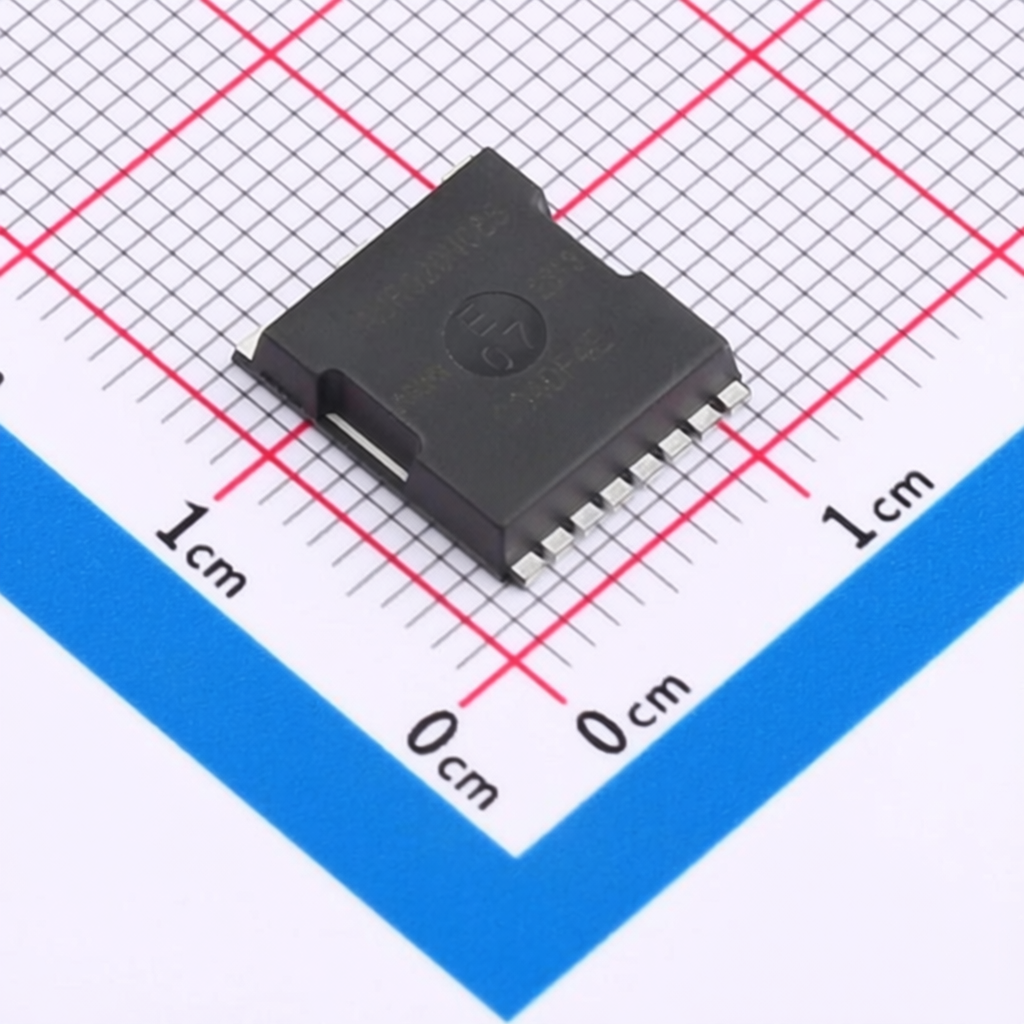

ANHI AUR020N085
Manufacturer:
ANHI
Asian Brands
Mfr. Part #:
AUR020N085
Package:
TOLL
Customer #:
Key Attributes:
MOSFET N-CH 85V 247A TOLL
Description:
N-Channel 85V 247A 275W Surface Mount TOLL
Datasheet:
ANHI AUR020N085
Products Specifications
Manufacturer:
Package:
TOLL
Drain to Source Voltage:
85V
Current - Continuous Drain(Id):
247A
Operating Temperature -:
-55℃~+150℃
RDS(on):
2mΩ@10V
Gate Threshold Voltage (Vgs(th)):
4.5V@250uA
Type:
N-Channel
Reverse Transfer Capacitance (Crss@Vds):
350pF
Number:
1 N-channel
Output Capacitance(Coss):
3.5nF
Input Capacitance(Ciss):
11nF
Pd - Power Dissipation:
275W
Gate Charge(Qg):
152nC@10V
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 2000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
ANHI
99 Products
ANHI, established in 2019 with a 180 million RMB investment from the Jinan municipal government, focuses on the design, manufacturing, process development, sales, and technical services of power device products and modules. The main products include MOSFETs, super junction MOSFETs, IGBTs, and SiC MOSFETs.
