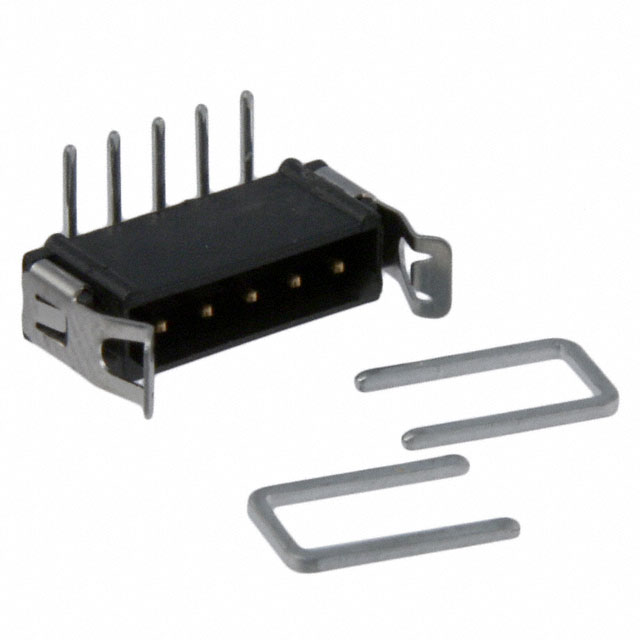

Harwin M80-8420542
Manufacturer:
Harwin
Mfr. Part #:
M80-8420542
Package:
Through Hole,Right Angle
Customer #:
Key Attributes:
M80 & M83 Series Rectangular Connectors
Description:
Connector Header Right Angle -55℃~+125℃
Products Specifications
Manufacturer:
Package:
Through Hole,Right Angle
Contact Material:
Phosphor bronze
Color:
Black
Flame Retardant Rating:
UL94V-0
Number of Rows:
1
Mounting Type:
Right Angle
Number of PINs:
5P
Operating Temperature:
-55℃~+125℃
Number of PINs Per Row:
5
Pitch:
2mm
Current Rating:
2.2A
Contact Plating:
Tin
Voltage Rating (Max):
120V
Pin Structure:
1x5P
Row Spacing:
2mm
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 18 |
| Sales Unit | Piece |
