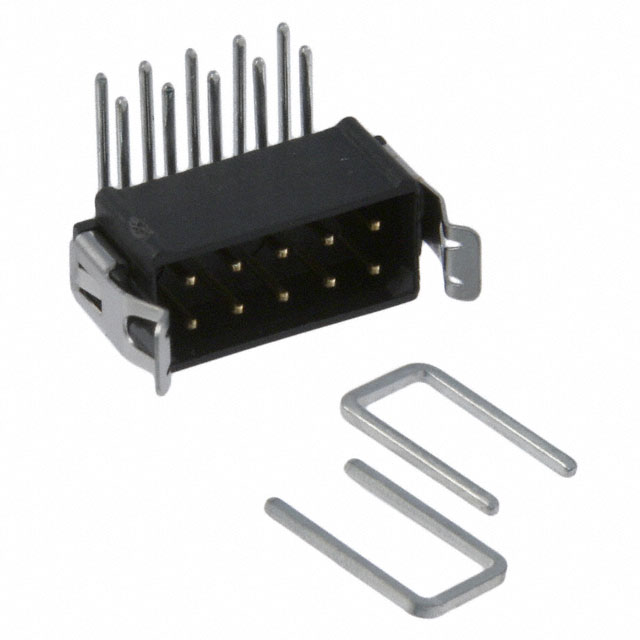

Harwin M80-8511042
Manufacturer:
Harwin
Mfr. Part #:
M80-8511042
Package:
Through Hole,Right Angle
Customer #:
Key Attributes:
M80 & M83 Series Rectangular Connectors
Description:
Connector Header Right Angle -55℃~+125℃
Products Specifications
Manufacturer:
Package:
Through Hole,Right Angle
Contact Material:
Phosphor bronze
Color:
Black
Flame Retardant Rating:
UL94V-0
Number of Rows:
2
Mounting Type:
Right Angle
Number of PINs:
10P
Operating Temperature:
-55℃~+125℃
Number of PINs Per Row:
5
Pitch:
2mm
Current Rating:
2.2A
Contact Plating:
Tin
Voltage Rating (Max):
800V
Pin Structure:
2x5P
Row Spacing:
2mm
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 18 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
