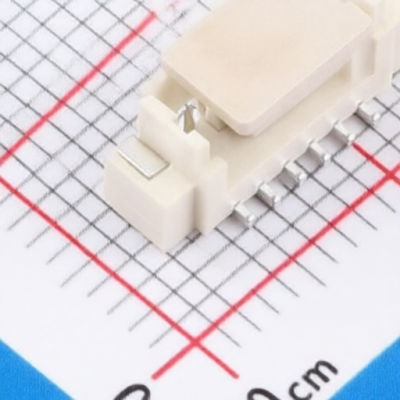

hanxia HX-1.25-6ALB
Manufacturer:
hanxia
Asian Brands
Mfr. Part #:
HX-1.25-6ALB
Package:
SMD,P=1.25mm
Customer #:
Description:
PicoBlade(MX 1.25) 1 6P -25℃~+70℃ 6 1.25mm 1A 125V 1x6P SMD,P=1.25mm Headers, Male Pins RoHS
Products Specifications
Manufacturer:
Package:
SMD,P=1.25mm
Reference Series:
PicoBlade(MX 1.25)
Contact Material:
Brass
Color:
Beige
Flame Retardant Rating:
UL94V-0
Number of Rows:
1
Mounting Type:
Surface Mount,Vertical
Number of PINs:
6P
Operating Temperature:
-25℃~+70℃
Plastic Material:
LCP
Number of PINs Per Row:
6
Pitch:
1.25mm
Current Rating:
1A
Contact Plating:
Tin
X-Length of Bottom Edge on Board (Spacing Line):
12.5mm
Voltage Rating (Max):
125V
Row Spacing:
-
Pin Structure:
1x6P
Additional Information
| Type | Details |
|---|---|
| Minimum | 20 |
| Multiple | 20 |
| Standard Packaging | 1500 |
| Sales Unit | Piece |
Get Best Price
Inquiry
Negotiate
Payment
Shipping
hanxia
1862 Products
Shenzhen Hanxia Electronics Co., Ltd
(hereinafter referred to as "HANXIA") was established in 2020. It is a high-tech enterprise focusing on the research and development and manufacturing of tact switches. The company's main products include tact switches, USB connectors, DC sockets, headphone jacks, etc., which are mainly used in automotive electronics, medical electronics, industrial equipment, new energy, consumer electronics, household appliances and other fields. HANXIA adheres to the concept of "development by quality and development by credit" to ensure the excellent quality of each product.
