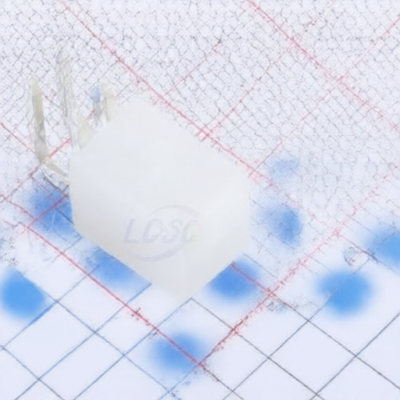

DLL DLL-5569-4AWS
Manufacturer:
DLL
Asian Brands
Mfr. Part #:
DLL-5569-4AWS
Package:
Through Hole,Right Angle,P=4.2mm
Customer #:
Key Attributes:
CONN HEADER TH R/A 4POS 4.2mm
Description:
Connector Header 4 position 4.2mm Pitch 9A Right Angle -35℃~+105℃
Products Specifications
Manufacturer:
Package:
Through Hole,Right Angle,P=4.2mm
Reference Series:
Mini-Fit(MX 4.2)
Contact Material:
Brass
Color:
Transparent
Flame Retardant Rating:
UL94V-0
Number of Rows:
2
Supplementary Features:
With post
Mounting Type:
Right Angle
Number of PINs:
4P
Operating Temperature:
-35℃~+105℃
Plastic Material:
PA66
Pitch:
4.2mm
Number of PINs Per Row:
2
Contact Plating:
Tin
Current Rating:
9A
Voltage Rating (Max):
300V
Pin Structure:
2x2P
Row Spacing:
4.2mm
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 1000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
