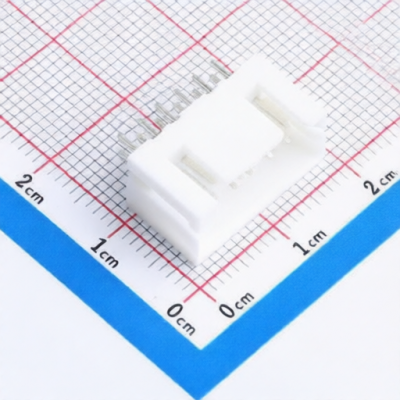

DLL XHY-12A
Manufacturer:
DLL
Asian Brands
Mfr. Part #:
XHY-12A
Package:
Through Hole,P=2.5mm
Customer #:
Key Attributes:
CONN HEADER TH 2.5mm
Description:
Connector Header 2.5mm Pitch 3A Through Hole -35℃~+105℃
Products Specifications
Manufacturer:
Package:
Through Hole,P=2.5mm
Contact Material:
Brass
Color:
White
Flame Retardant Rating:
UL94V-0
Number of Rows:
2
Mounting Type:
Through Hole
Number of PINs:
12P
Operating Temperature:
-35℃~+105℃
Plastic Material:
PA
Number of PINs Per Row:
6
Pitch:
2.5mm
Contact Plating:
Tin
Current Rating:
3A
Voltage Rating (Max):
250V
Row Spacing:
2.5mm
Pin Structure:
2x6P
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 1000 |
| Sales Unit | Piece |
Get Best Price
Inquiry
Negotiate
Payment
Shipping
DLL
794 Products
DLL, established in 1989 and located in Yueqing City, Wenzhou, is a modern high-tech enterprise specializing in the development and design of connectors, interconnects, and electronic components. The main products include wire-to-board connectors, wire-to-wire connectors, and board-to-board connectors.
