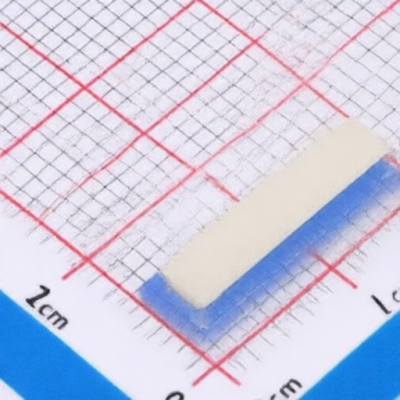

Bossie BX-SH1.0-15PWT
Manufacturer:
Bossie
Asian Brands
Mfr. Part #:
BX-SH1.0-15PWT
Package:
SMD,P=1mm,Surface Mount,Right Angle
Customer #:
Key Attributes:
CONN HEADER SMD R/A 15POS 1mm
Description:
Connector Header 15 position 1mm Pitch 1A Surface Mount, Right Angle
Products Specifications
Manufacturer:
Package:
SMD,P=1mm,Surface Mount,Right Angle
Reference Series:
SH
Contact Material:
Brass
Color:
Beige
Flame Retardant Rating:
-
Number of Rows:
1
Supplementary Features:
Auxiliary Solder Pin
Mounting Type:
Surface Mount, Right Angle
Operating Temperature:
-
Number of PINs:
15P
Plastic Material:
-
Number of PINs Per Row:
15
Pitch:
1mm
Current Rating:
1A
Contact Plating:
Tin
X-Length of Bottom Edge on Board (Spacing Line):
17.35mm
Voltage Rating (Max):
-
Row Spacing:
-
Pin Structure:
1x15P
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 2000 |
| Sales Unit | Piece |
