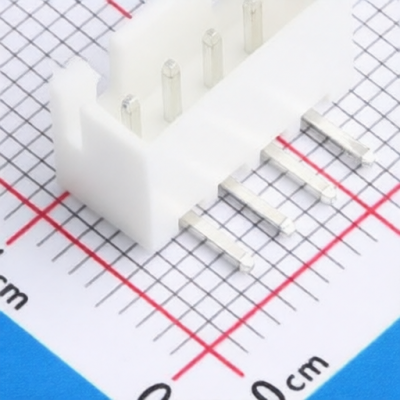

Bossie BX-XH2.54-4PWZ
Manufacturer:
Bossie
Asian Brands
Mfr. Part #:
BX-XH2.54-4PWZ
Package:
Through Hole,Right Angle,P=2.5mm
Customer #:
Key Attributes:
CONN HEADER TH R/A 4POS 2.5mm
Description:
Connector Header 4 position 2.5mm Pitch 3A Right Angle -25℃~+85℃
Products Specifications
Manufacturer:
Package:
Through Hole,Right Angle,P=2.5mm
Reference Series:
XH
Contact Material:
Brass
Color:
White
Flame Retardant Rating:
UL94V-0
Number of Rows:
1
Supplementary Features:
-
Mounting Type:
Right Angle
Number of PINs:
4P
Operating Temperature:
-25℃~+85℃
Plastic Material:
PA66
Number of PINs Per Row:
4
Pitch:
2.5mm
Contact Plating:
Tin
Current Rating:
3A
Voltage Rating (Max):
250V
X-Length of Bottom Edge on Board (Spacing Line):
12.5mm
Row Spacing:
-
Pin Structure:
1x4P
Additional Information
| Type | Details |
|---|---|
| Minimum | 20 |
| Multiple | 20 |
| Standard Packaging | 1000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
