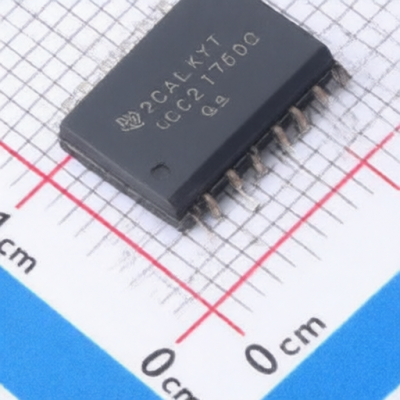

TI UCC21750QDWQ1
Manufacturer:
TI
Mfr. Part #:
UCC21750QDWQ1
Package:
SOIC-16-300mil
Customer #:
Key Attributes:
A 10A source/sink enhanced isolated single-channel gate driver suitable for SiC/IGBT with active protection, isolated analog sensing, and high CMTI
Description:
10A 33ns 27ns 10A SOIC-16-300mil Isolators - Gate Drivers RoHS
Products Specifications
Category:
Manufacturer:
Package:
SOIC-16-300mil
Operating Temperature:
-40℃~+150℃@(Tj)
Isolation voltage(Vrms):
5700
Propagation Delay(tpd):
130ns;130ns
Load Type:
MOSFET;IGBT
Current - Output High(IOH):
10A
Rise Time:
33ns
Voltage - Supply:
3V~5.5V;13V~33V
Fall Time:
27ns
CMTI(kV/us):
150kV/us
Number of Channels:
1
Current - Output Low(IOL):
10A
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 40 |
| Sales Unit | Piece |
Get Best Price
Inquiry
Negotiate
Payment
Shipping
TI
26911 Products
Texas Instruments Incorporated designs and manufactures analog technologies, digital signal processing (DSP) and microcontroller (MCU) semiconductors. TI is a leader in semiconductor solutions for analog and digital embedded and applications processing. A global semiconductor company, TI innovates through design, sales and manufacturing operations in more than 30 countries.
