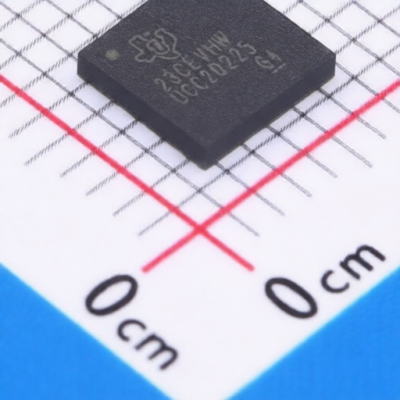

TI UCC20225NPLR
Manufacturer:
TI
Mfr. Part #:
UCC20225NPLR
Package:
VLGA-13(5x5)
Customer #:
Key Attributes:
Single-input isolated dual-channel gate driver in LGA package
Description:
4A 16ns 12ns 6A VLGA-13(5x5) Isolators - Gate Drivers RoHS
Products Specifications
Category:
Manufacturer:
Package:
VLGA-13(5x5)
Operating Temperature:
-40℃~+130℃@(Tj)
Isolation voltage(Vrms):
2500
Input Logic Level - High:
1.6V~2V
Current - Output High(IOH):
4A
Rise Time:
16ns
Voltage - Supply:
9.2V~25V;3V~18V
Fall Time:
12ns
CMTI(kV/us):
100kV/us
Number of Channels:
2
Current - Output Low(IOL):
6A
Quiescent Current:
2000uA
Propagation Delay(tpd):
30ns;30ns
Load Type:
MOSFET;IGBT
Input Logic Level - Low:
0.8V~1.2V
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 3000 |
| Sales Unit | Piece |
