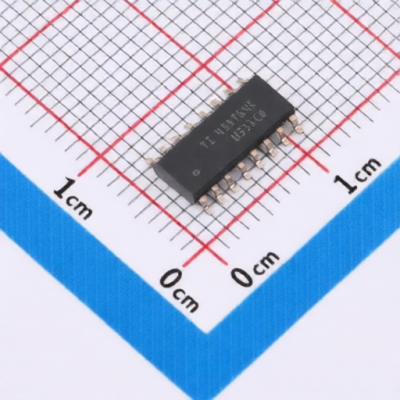

TI UCC21331CQDRQ1
Manufacturer:
TI
Mfr. Part #:
UCC21331CQDRQ1
Package:
SOIC-16
Customer #:
Key Attributes:
Automotive-grade 4A and 6A, 3.0 kVRMs isolated dual-channel gate drivers
Description:
2 SOIC-16 Gate Drivers RoHS
Products Specifications
Category:
Manufacturer:
Package:
SOIC-16
Peak Output Current(Source):
4A
Peak Output Current(Sink):
6A
Isolation voltage(Vrms):
3000
number of channels:
2
Input Voltage (Vin):
3V~5.5V
Operating Temperature:
-40℃~+150℃@(Tj)
Driven Configuration:
Half-Bridge
Propagation Delay tpLH:
45ns
Propagation Delay tpHL:
45ns
Voltage - Supply (Driver):
13.5V~25V
Rise Time:
8ns
Fall Time:
8ns
Load Type:
IGBT;MOSFET
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 2000 |
| Sales Unit | Piece |
