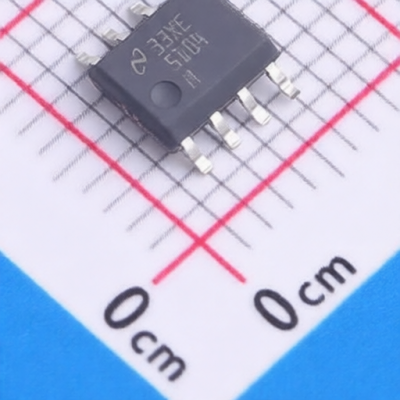

TI LM5104M
Manufacturer:
TI
Mfr. Part #:
LM5104M
Package:
SOIC-8
Customer #:
Key Attributes:
High Voltage Half-Bridge Gate Driver with Adaptive Delay
Description:
1.6A 9V~14V SOIC-8 Gate Drivers RoHS
Products Specifications
Manufacturer:
Package:
SOIC-8
Propagation Delay tpHL:
25ns
Rise Time:
600ns
Peak Output Current(Sink):
1.8A
Features:
Under Voltage Protection
Current - Output High(IOH):
1.6A
Fall Time:
15ns
Quiescent Current(Iq):
400uA
Load Type:
MOSFET
Voltage - Supply:
9V~14V
Input Logic Level - High:
1.8V~2.2V
Operating Temperature:
-40℃~+125℃
Driven Configuration:
Half-Bridge
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 95 |
| Sales Unit | Piece |
