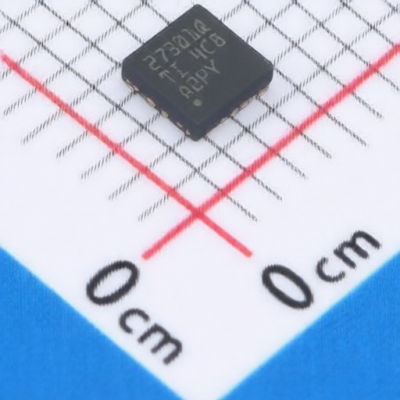

TI UCC27301AQDRCRQ1
Manufacturer:
TI
Mfr. Part #:
UCC27301AQDRCRQ1
Package:
VSON-10(3x3)
Customer #:
Key Attributes:
Automotive-grade 120V, 3.7A/4.5A half-bridge driver with 8V UVLO, interlock and enable functions
Description:
Half-Bridge Gate Driver IC MOSFET VSON-10(3x3)
Products Specifications
Manufacturer:
Package:
VSON-10(3x3)
Input Logic Level - Low:
1.2V~1.9V
Peak Output Current(Sink):
3.7A
Quiescent Current(Iq):
190uA
Voltage - Supply:
8V~17V
Driven Configuration:
Half-Bridge
Operating Temperature:
-40℃~+150℃
Propagation Delay tpLH:
20ns
Propagation Delay tpHL:
19ns
Rise Time:
7.2ns
Fall Time:
5.5ns
Current - Output High(IOH):
4.5A
Features:
Under Voltage Protection
Load Type:
MOSFET
Input Logic Level - High:
1.7V~2.55V
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 3000 |
| Sales Unit | Piece |
