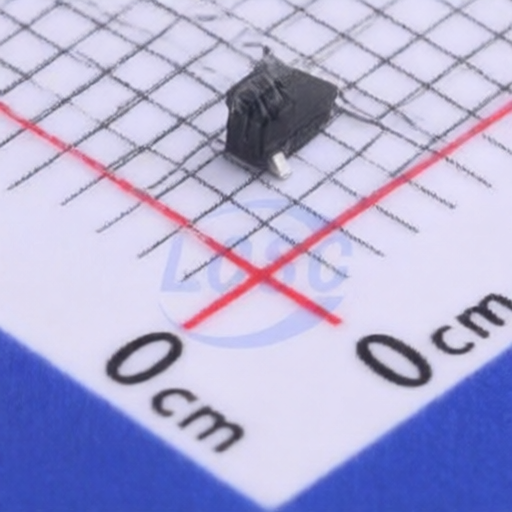

YANGJIE YJL2301C

Name: YANGJIE YJL2301C
Brand: YANGJIE

Manufacturer: YANGJIE Asian Brands

Mfr. Part #: YJL2301C

Package: SOT-23(TO-236)

Customer #:

Key Attributes: MOSFET P-CH 20V 3.4A SOT-23(TO-236)

Description: P-Channel 20V 3.4A 1W Surface Mount SOT-23(TO-236)

Datasheet: YANGJIE YJL2301C

Products Specifications

Category:

Discrete Semiconductors/FETs, MOSFETs/Single FETs, MOSFETs

Manufacturer:

YANGJIE

Package:

SOT-23(TO-236)

Drain to Source Voltage:

20V

Current - Continuous Drain(Id):

3.4A

Operating Temperature -:

-55℃~+150℃

RDS(on):

49mΩ@4.5V,3.4A

Gate Threshold Voltage (Vgs(th)):

400mV

Type:

P-Channel

Reverse Transfer Capacitance (Crss@Vds):

65pF

Number:

1 P-Channel

Output Capacitance(Coss):

89pF

Input Capacitance(Ciss):

550pF

Pd - Power Dissipation:

Gate Charge(Qg):

4.3nC@4.5V

Additional Information

Type	Details
Minimum	20
Multiple	20
Standard Packaging	3000
Sales Unit	Piece
