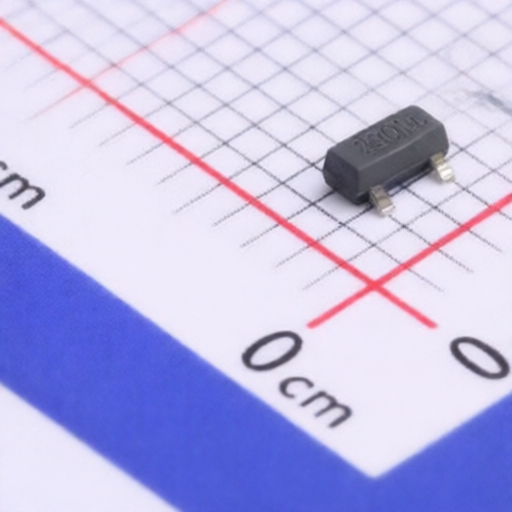

YANGJIE YJL2301G

Name: YANGJIE YJL2301G
Brand: YANGJIE

Manufacturer: YANGJIE Asian Brands

Mfr. Part #: YJL2301G

Package: SOT-23(TO-236)

Customer #:

Key Attributes: MOSFET P-CH 15V 2A SOT-23(TO-236)

Description: P-Channel 15V 2A 0.7W Surface Mount SOT-23(TO-236)

Datasheet: YANGJIE YJL2301G

Products Specifications

Category:

Discrete Semiconductors/FETs, MOSFETs/Single FETs, MOSFETs

Manufacturer:

YANGJIE

Package:

SOT-23(TO-236)

Drain to Source Voltage:

15V

Current - Continuous Drain(Id):

Operating Temperature -:

-55℃~+150℃

RDS(on):

82mΩ@4.5V,1.5A

Gate Threshold Voltage (Vgs(th)):

620mV

Type:

P-Channel

Reverse Transfer Capacitance (Crss@Vds):

29pF

Number:

1 P-Channel

Output Capacitance(Coss):

44pF

Input Capacitance(Ciss):

260pF

Pd - Power Dissipation:

700mW

Gate Charge(Qg):

3.9nC@4.5V

Additional Information

Type	Details
Minimum	20
Multiple	20
Standard Packaging	3000
Sales Unit	Piece
