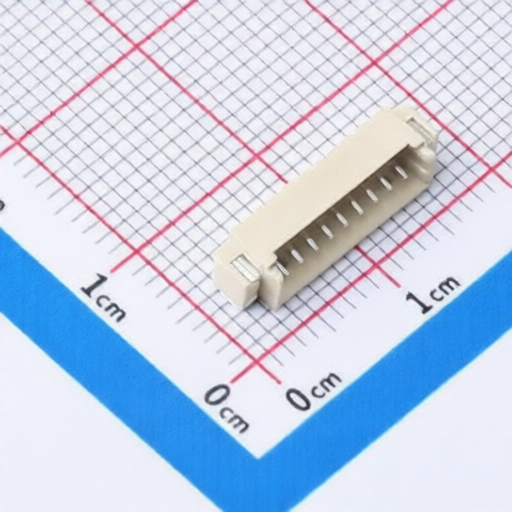

XYECONN XY-MX1.25-9A61
Manufacturer:
XYECONN
Asian Brands
Mfr. Part #:
XY-MX1.25-9A61
Package:
SMD,P=1.25mm,Surface Mount,Right Angle
Customer #:
Key Attributes:
CONN HEADER SMD R/A 9POS 1.25mm
Description:
Connector Header 9 position 1.25mm Pitch Surface Mount, Right Angle
Datasheet:
XYECONN XY-MX1.25-9A61
Products Specifications
Manufacturer:
Package:
SMD,P=1.25mm,Surface Mount,Right Angle
Y-Width of Bottom Edge on Board:
4.3mm
Pins Structure:
1x9P
Contact Material:
Brass;LCP
Flame Retardant Rating:
UL94V-0
Number of Rows:
1
Mounting Type:
Surface Mount, Right Angle
Pitch:
1.25mm
Operating Temperature:
-25℃~+85℃
Number of PINs:
9P
Number of PINs Per Row:
9
Current Rating:
1A
Contact Plating:
Tin
Voltage Rating (Max):
100V
Z-Height of the Board:
3.5mm
Row Spacing:
2mm
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 2000 |
| Sales Unit | Piece |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
XYECONN
2578 Products
XYECONN is a technology enterprise focused on the research, development, production, and promotion of new technologies. It possesses advanced manufacturing equipment and precise testing instruments. The company primarily produces connectors, including board-to-board connectors, wire-to-wire connectors, and wire harness processing, and also engages in the design and manufacturing of connector molds.
