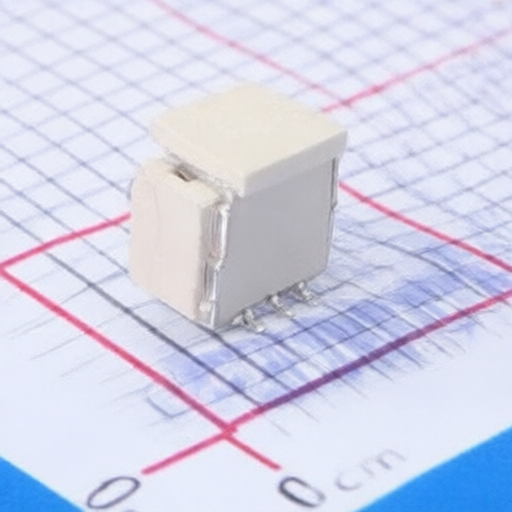

XYECONN XY-SH1.0-3A51
Manufacturer:
XYECONN
Asian Brands
Mfr. Part #:
XY-SH1.0-3A51
Package:
SMD,P=1mm
Customer #:
Key Attributes:
CONN HEADER SMD 3POS 1mm
Description:
Connector Header 3 position 1mm Pitch Surface Mount,Vertical
Datasheet:
XYECONN XY-SH1.0-3A51
Products Specifications
Manufacturer:
Package:
SMD,P=1mm
Y-Width of Bottom Edge on Board:
3.6mm
Pins Structure:
1x3P
Contact Material:
Brass;LCP
Flame Retardant Rating:
UL94V-0
Number of Rows:
1
Mounting Type:
Surface Mount,Vertical
Pitch:
1mm
Operating Temperature:
-25℃~+85℃
Number of PINs:
3P
Number of PINs Per Row:
3
Current Rating:
1A
Contact Plating:
Tin
Voltage Rating (Max):
50V
Z-Height of the Board:
4.9mm
Additional Information
| Type | Details |
|---|---|
| Minimum | 10 |
| Multiple | 10 |
| Standard Packaging | 1500 |
| Sales Unit | Piece |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
XYECONN
2578 Products
XYECONN is a technology enterprise focused on the research, development, production, and promotion of new technologies. It possesses advanced manufacturing equipment and precise testing instruments. The company primarily produces connectors, including board-to-board connectors, wire-to-wire connectors, and wire harness processing, and also engages in the design and manufacturing of connector molds.
