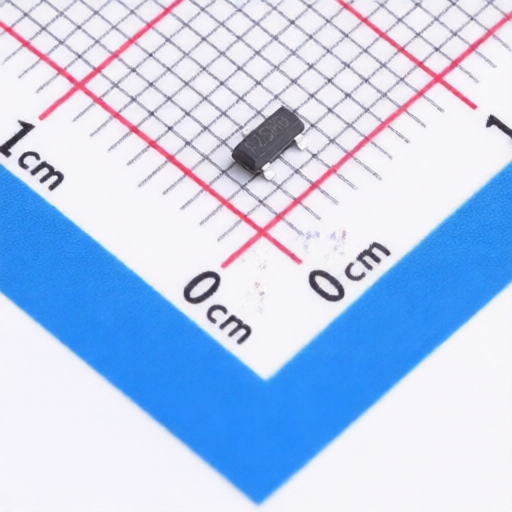

XNRUSEMI XR2302B
Manufacturer:
XNRUSEMI
Asian Brands
Mfr. Part #:
XR2302B
Package:
SOT-23
Customer #:
Key Attributes:
MOSFET N-CH 20V 3.6A SOT-23
Description:
N-Channel 20V 3.6A 1.05W Surface Mount SOT-23
Datasheet:
XNRUSEMI XR2302B
Products Specifications
Manufacturer:
Package:
SOT-23
Drain to Source Voltage:
20V
Current - Continuous Drain(Id):
3.6A
RDS(on):
45mΩ@4.5V
Operating Temperature -:
-55℃~+150℃
Gate Threshold Voltage (Vgs(th)):
1.1V@250uA
Type:
N-Channel
Reverse Transfer Capacitance (Crss@Vds):
34pF
Number:
1 N-channel
Output Capacitance(Coss):
37pF
Input Capacitance(Ciss):
180pF
Pd - Power Dissipation:
1.05W
Gate Charge(Qg):
6.23nC@5V
Additional Information
| Type | Details |
|---|---|
| Minimum | 50 |
| Multiple | 50 |
| Standard Packaging | 3000 |
| Sales Unit | Piece |
