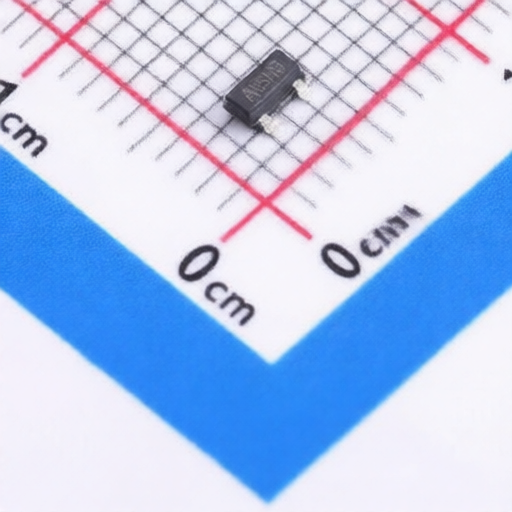

XNRUSEMI XR2301
Manufacturer:
XNRUSEMI
Asian Brands
Mfr. Part #:
XR2301
Package:
SOT-23
Customer #:
Key Attributes:
MOSFET P-CH 20V 3A SOT-23
Description:
P-Channel 20V 3A 1W Surface Mount SOT-23
Datasheet:
XNRUSEMI XR2301
Products Specifications
Manufacturer:
Package:
SOT-23
Drain to Source Voltage:
20V
Current - Continuous Drain(Id):
3A
RDS(on):
97mΩ@4.5V
Operating Temperature -:
-55℃~+150℃
Gate Threshold Voltage (Vgs(th)):
1V@250uA
Type:
P-Channel
Reverse Transfer Capacitance (Crss@Vds):
58pF
Number:
1 P-Channel
Output Capacitance(Coss):
67pF
Input Capacitance(Ciss):
503pF
Pd - Power Dissipation:
1W
Gate Charge(Qg):
4.1nC@4.5V
Additional Information
| Type | Details |
|---|---|
| Minimum | 50 |
| Multiple | 50 |
| Standard Packaging | 3000 |
| Sales Unit | Piece |
