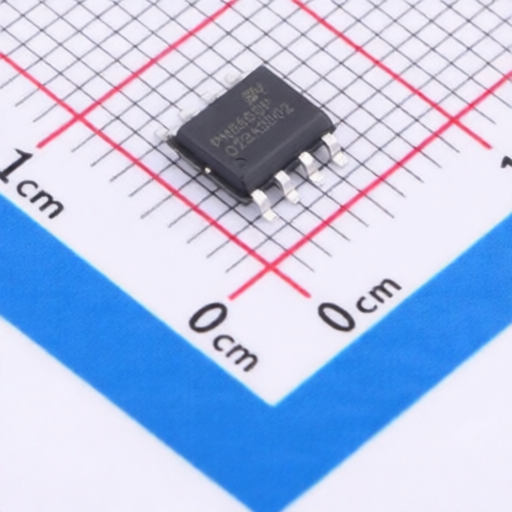

Wuxi Chipown Micro-electronics PN8680PSEC-R1
Manufacturer:
Wuxi Chipown Micro-electronics
Asian Brands
Mfr. Part #:
PN8680PSEC-R1
Package:
SOP-8
Customer #:
Key Attributes:
Ultra-low standby power consumption primary-side feedback AC-DC converter
Description:
650V 10V~30V Flyback SOP-8 AC DC Converters, Offline Switchers RoHS
Datasheet:
Wuxi Chipown Micro-electronics PN8680PSEC-R1
Products Specifications
Manufacturer:
Package:
SOP-8
Operating Temperature:
-40℃~+150℃
Frequency - Switching:
-
Output Current:
-
Pd - Power Dissipation:
-
Voltage - Breakdown:
650V
Voltage - Supply:
10V~30V
Topology:
Flyback
Features:
Constant Current Mode (CC);Constant Voltage (CV);Over Temperature Protection;Over Voltage Protection;Under Voltage Protection;Over Current Protection;Short Circuit Protection;Open-Loop Protection (OLP)
Duty Cycle(Max):
-
Working Mode:
PFM Modulation;PWM Modulation
Feedback System:
Primary-Side Feedback
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 4000 |
| Sales Unit | Piece |
