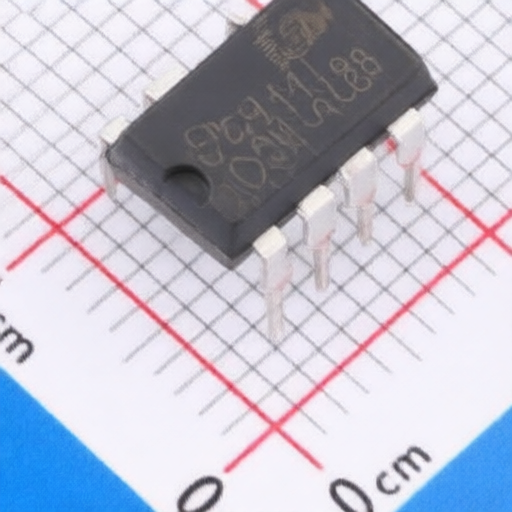

Wuxi Chipown Micro-electronics PN8147NSC-T1
Manufacturer:
Wuxi Chipown Micro-electronics
Asian Brands
Mfr. Part #:
PN8147NSC-T1
Package:
DIP-7
Customer #:
Key Attributes:
Ultra-low standby power consumption AC-DC conversion chip
Description:
Converter Offline Flyback Topology 54kHz~66kHz DIP-7
Datasheet:
Wuxi Chipown Micro-electronics PN8147NSC-T1
Products Specifications
Manufacturer:
Package:
DIP-7
Operating Temperature:
-40℃~+140℃
Frequency - Switching:
54kHz~66kHz
Output Current:
-
Pd - Power Dissipation:
1W
Voltage - Breakdown:
650V
Voltage - Supply:
9V~24V
Topology:
Flyback
Features:
Over Temperature Protection;Overload Protection;Over Voltage Protection;Soft Start
Output Voltage:
-
Duty Cycle(Max):
70%
Feedback System:
-
Working Mode:
PWM Modulation;PFM Modulation
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 50 |
| Sales Unit | Piece |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
Wuxi Chipown Micro-electronics
74 Products
Wuxi Chipown Micro-electronics limited （Chipown） is an innovative & professional high-tech company engaged in analog and mixed signal IC design, headquartered in Jiangsu Wuxi high tech development zone with design centers and customer support centers in Suzhou,Shenzhen,Hongkong,Nanjing,Xiamen,Zhongshan and Shunde. Founded in 2005, the company is focused on developing green power management and driver ICs, supplying customers with high efficiency, low power consumption, and high quality IC products while providing one-stop application solutions and on-site technical support services that enable customer’s systems with better performance, being flexible, reliable and cost-competitive.
