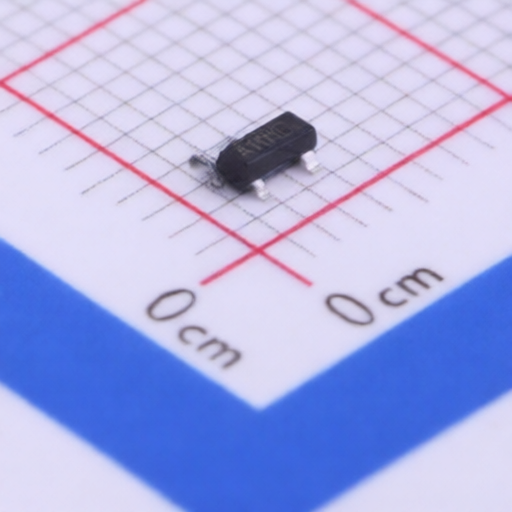

UMW SI2301B
Manufacturer:
UMW
Asian Brands
Mfr. Part #:
SI2301B
Package:
SOT-23
Customer #:
Key Attributes:
MOSFET P-CH 20V 2.5A SOT-23
Description:
P-Channel 20V 2.5A 0.35W Surface Mount SOT-23
Datasheet:
UMW SI2301B
Products Specifications
Manufacturer:
Package:
SOT-23
Drain to Source Voltage:
20V
Current - Continuous Drain(Id):
2.5A
Operating Temperature -:
-55℃~+150℃
RDS(on):
150mΩ@2.5V,2A
Gate Threshold Voltage (Vgs(th)):
1V
Type:
P-Channel
Reverse Transfer Capacitance (Crss@Vds):
55pF@10V
Number:
1 P-Channel
Output Capacitance(Coss):
75pF
Input Capacitance(Ciss):
405pF@10V
Pd - Power Dissipation:
350mW
Gate Charge(Qg):
6nC@4.5V
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 3000 |
| Sales Unit | Piece |
