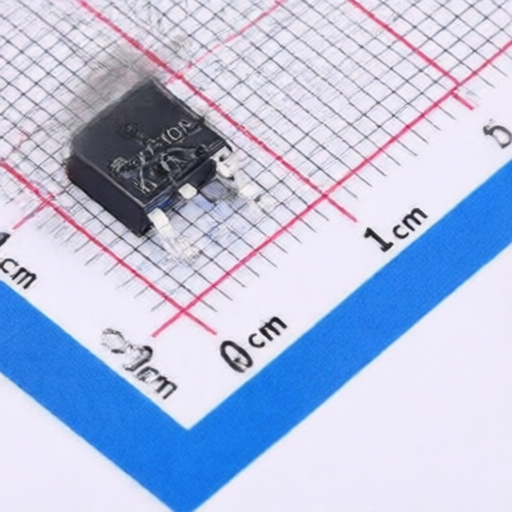

UNI-SEMIC APG180N10K
Manufacturer:
UNI-SEMIC
Asian Brands
Mfr. Part #:
APG180N10K
Package:
TO-252
Customer #:
Key Attributes:
MOSFET N-CH 100V 50A TO-252
Description:
N-Channel 100V 50A 68W Surface Mount TO-252
Datasheet:
UNI-SEMIC APG180N10K
Products Specifications
Manufacturer:
Package:
TO-252
Drain to Source Voltage:
100V
Current - Continuous Drain(Id):
50A
RDS(on):
18mΩ@10V
Operating Temperature -:
-55℃~+150℃
Gate Threshold Voltage (Vgs(th)):
2.5V@250uA
Reverse Transfer Capacitance (Crss@Vds):
3.5pF@50V
Number:
1 N-channel
Output Capacitance(Coss):
196pF
Input Capacitance(Ciss):
1.05nF@50V
Pd - Power Dissipation:
68W
Gate Charge(Qg):
13.9nC@10V
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 2500 |
| Sales Unit | Piece |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
UNI-SEMIC
88 Products
Zhejiang UNIU-NE Technology Co., Ltd.
(hereafter referred to as "UNI-SEMIC") specializes in integrated circuit design and sales within the new energy field. The company is dedicated to providing customers with reliable, low-power, and high-performance products, along with one-stop application solutions and on-site technical support. The main offerings of the company include new energy power management ICs, electromechanical control ICs, high-precision special digital modules combined with new energy-specific ICs, high-end intelligent power modules (IPMs), and specialized system-on-chip (SoC) modules. Additionally, the company has collaborated with leading technology manufacturers to develop a range of ICs and GaN/SiC process MOSFETs specifically designed for the new energy electromechanical industry. With years of extensive application, these products have been thoroughly tested for high and low temperatures, oxidation resistance, wear resistance, electrical insulation, and impact resi
