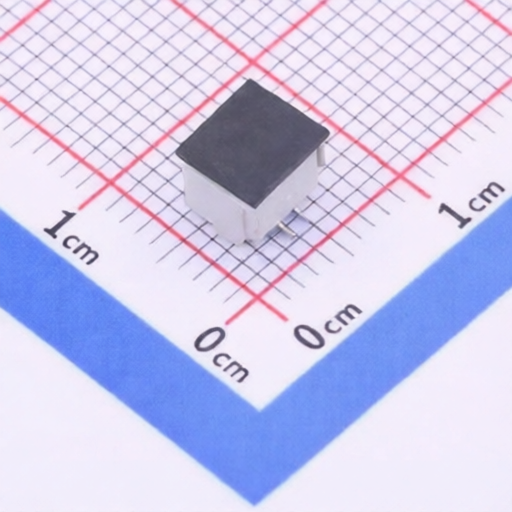

TXGA FWF12513-S02S24W5M
Manufacturer:
TXGA
Asian Brands
Mfr. Part #:
FWF12513-S02S24W5M
Package:
SMD,P=1.25mm
Customer #:
Key Attributes:
CONN HEADER SMD 2POS 1.25mm
Description:
Connector Header 2 position 1.25mm Pitch 1A Surface Mount,Vertical -25℃~+85℃
Datasheet:
TXGA FWF12513-S02S24W5M
Products Specifications
Manufacturer:
Package:
SMD,P=1.25mm
Y-Width of Bottom Edge on Board:
4.95mm
Pins Structure:
1x2P
Reference Series:
-
Contact Material:
Brass;PA6T
Flame Retardant Rating:
UL94V-0
Number of Rows:
1
Mounting Type:
Surface Mount,Vertical
Pitch:
1.25mm
Number of PINs:
2P
Operating Temperature:
-25℃~+85℃
Number of PINs Per Row:
2
Contact Plating:
Tin
Current Rating:
1A
Voltage Rating (Max):
125V
Z-Height of the Board:
4.05mm
Row Spacing:
-
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 1000 |
| Sales Unit | Piece |
