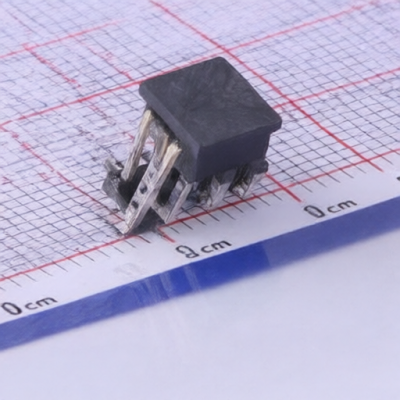

Wcon 1125-1204S5M163CP02
Manufacturer:
Wcon
Asian Brands
Mfr. Part #:
1125-1204S5M163CP02
Package:
SMD,P=2.54mm
Customer #:
Description:
Pin Header 8 Position 2.54mm Pitch Dual Row Surface Mount -40℃~+105℃
Products Specifications
Manufacturer:
Package:
SMD,P=2.54mm
Pins Structure:
2x4P
Contact Material:
Brass
Color:
Black
Circluar Pins/Square Pins:
Pin Header
Number of Rows:
2
Mounting Type:
Surface Mount,Vertical
Pitch:
2.54mm
Insulation Height:
2.5mm
Length of Mating Pin:
10.6mm
Number of PINs:
8P
Length of End Connection Pin:
-
Operating Temperature:
-40℃~+105℃
Contact Plating:
Half Gold Plating over Tin
Current Rating:
3A
Voltage Rating (Max):
320V
Row Spacing:
2.54mm
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 57 |
| Sales Unit | Piece |
Get Best Price
Inquiry
Negotiate
Payment
Shipping
Wcon
828 Products
Dongguan WCON Group, established in May of 1999, specializes in operating businesses of precise Board to Board, Wire-to-board connectors, Industrial Terminal blocks and cable assemblies for computer & peripheral devices. After 17 years of steady development, Now have two factories: Dongguan WCON Hardware Electronics Co., Ltd and Kunshan Wcon Electronics Co., Ltd. Since its foundation, the company sticks to the production of specialization and tries its best to supply precise and reliable connector products, from the develop, design and manufacture of metal terminal and plastic molds to the precision high-speed punch molding, precise plastic injection molding and automatic assembly, that have a skilled R&D and management team.
