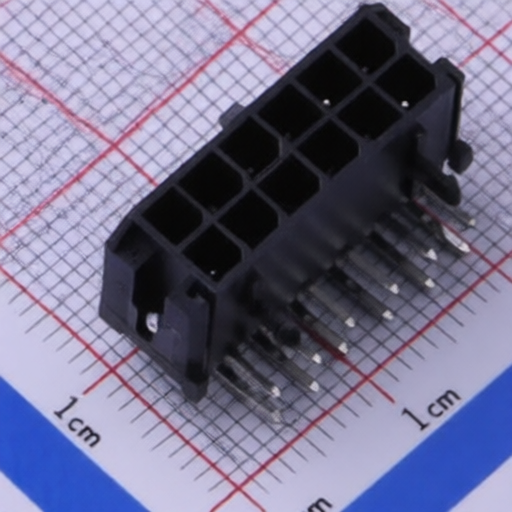

TXGA FWF30002-D12B22K6B
Manufacturer:
TXGA
Asian Brands
Mfr. Part #:
FWF30002-D12B22K6B
Package:
Through Hole,Right Angle,P=3mm
Customer #:
Key Attributes:
Wire to Board (Wafer), Pitch 3.0mm 90° Angle (DIP)
Description:
2x6P 2 3mm 12P -25℃~+85℃ 6 3A 50V 3mm Through Hole,Right Angle,P=3mm Headers, Male Pins RoHS
Datasheet:
TXGA FWF30002-D12B22K6B
Products Specifications
Manufacturer:
Package:
Through Hole,Right Angle,P=3mm
Y-Width of Bottom Edge on Board:
12.2mm
Pins Structure:
2x6P
Contact Material:
Brass;PA66
Flame Retardant Rating:
UL94V-0
Number of Rows:
2
Mounting Type:
Right Angle
Pitch:
3mm
Number of PINs:
12P
Operating Temperature:
-25℃~+85℃
Number of PINs Per Row:
6
Current Rating:
3A
Contact Plating:
Tin
Voltage Rating (Max):
50V
Row Spacing:
3mm
Z-Height of the Board:
7.37mm
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 1000 |
| Sales Unit | Piece |
