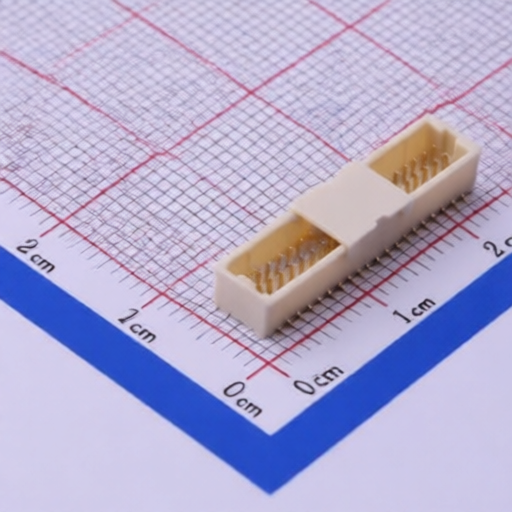

TXGA FWF10003-D40S14W5M
Manufacturer:
TXGA
Asian Brands
Mfr. Part #:
FWF10003-D40S14W5M
Package:
SMD,P=1mm
Customer #:
Key Attributes:
Wire to Board (Wafer), Pitch 1.0mm 180°Vertical(SMT)
Description:
2x20P 2 1mm 40P -25℃~+85℃ 20 1A 50V SMD,P=1mm Headers, Male Pins RoHS
Datasheet:
TXGA FWF10003-D40S14W5M
Products Specifications
Manufacturer:
Package:
SMD,P=1mm
Y-Width of Bottom Edge on Board:
5.56mm
Pins Structure:
2x20P
Contact Material:
PA9T;Brass
Flame Retardant Rating:
UL94V-0
Number of Rows:
2
Mounting Type:
Surface Mount,Vertical
Pitch:
1mm
Number of PINs:
40P
Operating Temperature:
-25℃~+85℃
Number of PINs Per Row:
20
Current Rating:
1A
Contact Plating:
Tin
Voltage Rating (Max):
50V
Z-Height of the Board:
4.35mm
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 1000 |
| Sales Unit | Piece |
